Coupling Dynamic Interfacial Pressure Retention with Anode Swelling Tolerances in Large Format Solid State Pouch Cells

Displacement

A sixty-ampere-hour lithium metal solid-state cell experiences between eight and fifteen percent active stack growth during full charge. When pure lithium plates onto the current collector, the physical boundary expands outward along the z-axis. The solid electrolyte ceramic or sulfide separator cannot deform plastically to absorb this movement.

If the external mechanical fixture exerts inadequate load, the stripping step during discharge leaves vacant microscopic pockets at the interface. Microscopic voids reduce contact area, elevate local current density, and initiate dendrite penetration through solid separator microcracks during subsequent charges. Lithium metal deposits unevenly.

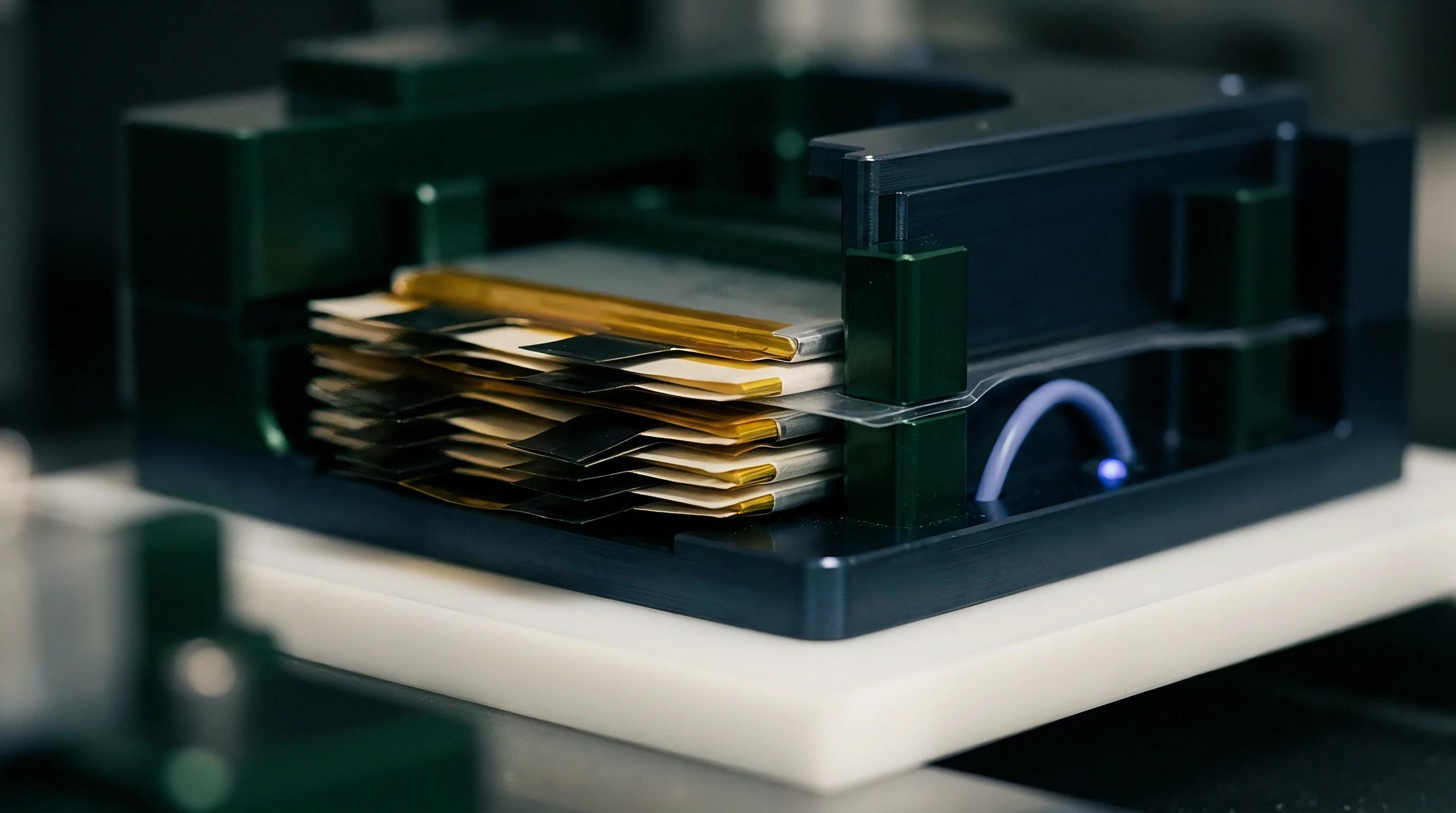

In large-format pouch dimensions exceeding three hundred millimeters in length, macroscopic variations in layer thickness compound across eighty to one hundred stacked electrochemical repeating units. A nominal five-millimeter uncharged cell grows by four hundred to seven hundred micrometers at one hundred percent state of charge. Solid separator sheets, particularly brittle garnet-type oxides or dense sulfidic glasses, exhibit negligible lateral elasticity.

Volume changes break interfaces. The external clamping assembly balances two competing boundaries: applying sufficient pressure to drive lithium creep and maintain continuous interfacial contact during discharge, while preventing localized stress concentrations that fracture the fragile solid separator during charge expansion.

Thicker end plates preserve center stack compression while starving outer cell edges unless spherical load buttons redistribute the clamp vector.

Electrochemical Breathing Profiles across Solid Separators

Sulfide separators such as lithium phosphorus sulfur chloride glass-ceramics deform under moderate mechanical loading, displaying pseudo-plasticity under twenty to fifty megapascals during initial dry-room roll pressing. In an operating pouch cell, the continuous working pressure envelope drops to a window of zero point five to five megapascals. Lower pressures allow contact loss at the negative interface when current densities exceed two milliamperes per square centimeter.

Higher pressures accelerate chemical creep in the metallic lithium foil, extruding lithium through interparticle boundaries in the separator matrix and creating electrical dead shorts.

Silicon-dominant anodes paired with solid or gel-polymer electrolytes introduce a different mechanical dynamic. Silicon particles expand up to three hundred percent isotropically upon lithiation, producing thirty to forty percent gross electrode swelling even with twenty weight percent void engineering in the composite matrix. Unlike lithium metal foil, which plates and strips as a phase front, porous silicon composite anodes breathe uniformly across their bulk thickness.

This breathing generates intense internal hydrostatic stresses that transfer directly to the pouch packaging foil.

Mechanical compliance mechanisms fail when localized current distributions create non-uniform expansion zones across the pouch surface. The perimeter of the active electrode stack cools faster than the core, establishing thermal gradients of five to eight degrees Celsius during high-rate operations. Warmer interior zones exhibit lower overpotentials and faster ionic transport through the solid electrolyte, accumulating plated lithium mass faster than the perimeter.

The resulting convex profile concentrates external clamping forces at the center of the pouch, starving the periphery of the pressure necessary to suppress void formation during discharge cycles.

• Interfacial Void Delamination occurs when local stack compression drops below zero point two megapascals during discharge, severing physical contact between the lithium reservoir and the solid separator.
• Separator Shear Fracture develops where non-uniform thickness swelling introduces bending moments across brittle ceramic or glass electrolyte sheets, creating through-thickness fissure paths.
• Lithium Creep Infiltration accelerates under localized contact pressures exceeding eight megapascals, forcing soft metallic lithium through microscopic separator voids until it contacts the cathode.
• Perimeter Thermal Starvation originates from center-peaked current densities that thicken the pouch center, offloading necessary mechanical containment from the colder cell margins.

The resulting divergence in local pressure accelerates impedance growth. Electrochemical impedance spectroscopy shows the mid-frequency charge transfer resistance doubling within two hundred cycles when interfacial load drops below design minimums. Stack pressure governs void formation.

As contact area degrades, current concentrates into remaining conductive paths, accelerating localized degradation in an ongoing cycle.

Spring

Mechanical compliance inside a solid-state pack module governs whether interfacial contact survives thousands of electrochemical expansion cycles. Rigid retention frames without internal compliance elements experience extreme load escalation during charge, often surpassing twelve megapascals at full lithiation before relaxing to near-zero load at zero percent state of charge. Clamping plates flex under load.

To maintain cell surface pressure within an operational band of one to three megapascals throughout cell life, the module retention system incorporates dynamic mechanical elements whose deflection matches cell swelling.

Should Elastomeric Foam Replace Belleville Washers?

Microcellular polyurethane and silicone foam pads provide distributed compliance directly against cell faces. These elastomeric sheets possess a non-linear stress-strain response, characterized by an initial linear elastic zone, an extended stress plateau where internal cells collapse, and a rapid densification region where stiffness climbs steeply. Operating an elastomeric pad within its plateau region dampens pressure spikes as pouch thickness increases during charge.

Foams introduce long-term creep risks: under sustained temperature and compression, polyurethane networks undergo permanent compression set, shedding up to forty percent of their initial clamping resistance over three years of automotive storage temperatures.

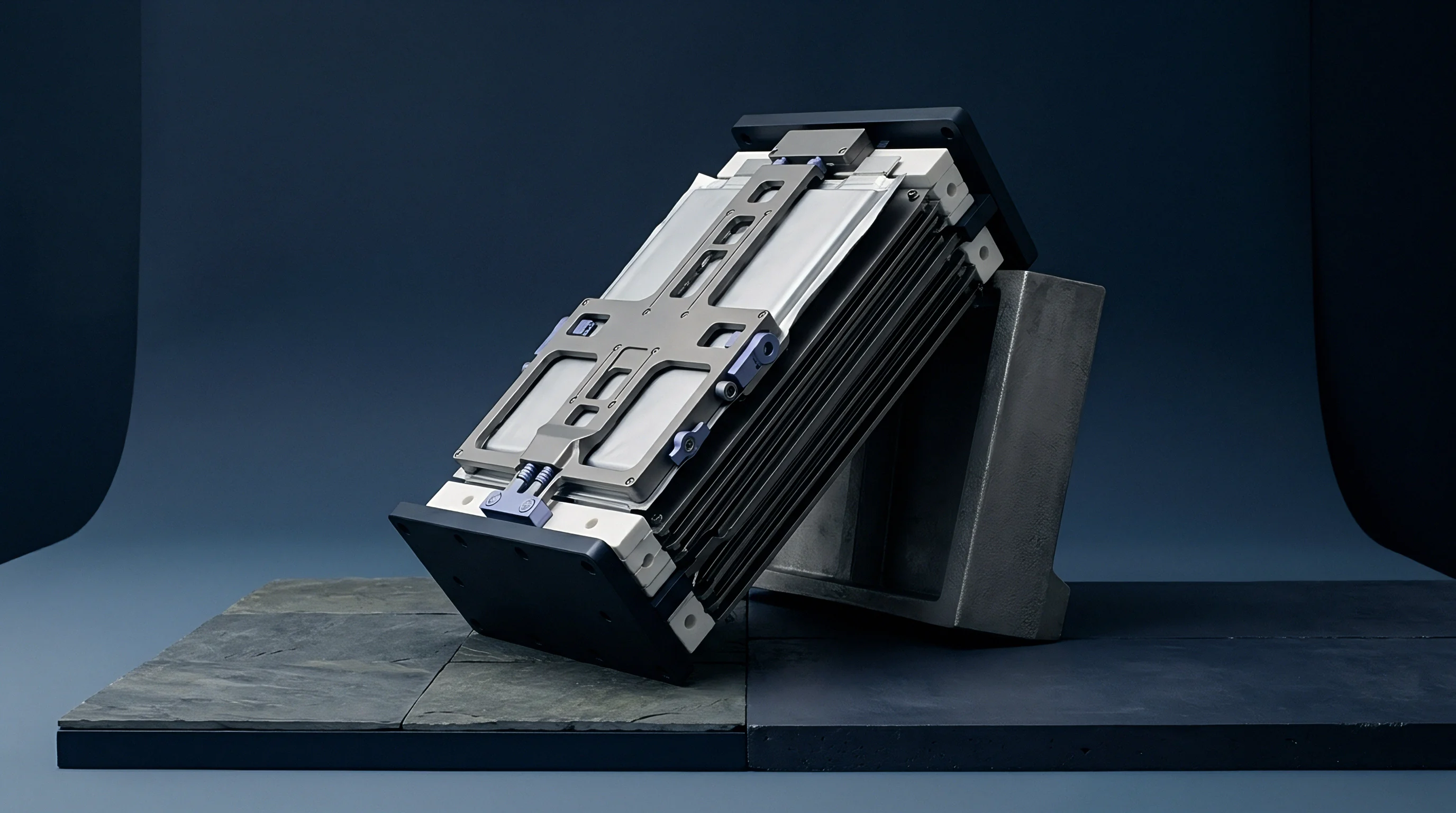

Metallic disc springs arranged in series-parallel Belleville stacks deliver predictable load-deflection profiles unaffected by viscoelastic relaxation. Belleville washers sit outside the module end plates, acting on tie rods that span the entire multi-cell stack. This arrangement maintains stable load retention over millions of deflection cycles and tolerates temperatures from minus forty to eighty-five degrees Celsius without property drift.

Belleville mechanisms concentrate their force into discrete rod axes, requiring thick, heavy structural plates to spread the load uniformly across the pouch face.

Module designers select compliance mechanisms based on pack-level energy density limits and thermal constraints. Foam pads double as thermal barriers, restricting heat rejection through cell faces and forcing cooling architectures to rely on edge conduction through copper thermal fins. External spring assemblies preserve direct thermal contact between pouch broad faces and liquid-cooled cold plates, but impose severe gravimetric penalties through thick aluminum or steel structural end plates.

Tie rods stretch under load. When end plates bend under internal pressure, the center of the cell receives less pressure than the perimeter, reversing the natural swelling profile and fracturing separator edges.

• Working Deflection Stroke covers both reversible state-of-charge breathing and irreversible end-of-life thickness accretion within the linear compliance range.
• Pressure Variation Bandwidth restricts the delta between minimum discharge pressure and peak charge pressure to less than two megapascals across the lifetime.
• Planar Load Homogeneity prevents pressure divergence across the active pouch surface from exceeding twenty percent of the target setpoint.
• Thermal Resistance Penalty limits thermal isolation between cell faces and module cooling plates to ensure core cell temperatures remain within safe operating windows.

Cell vendors routinely assert that pack enclosures must supply all compensation mechanics because pouch pouches cannot regulate their own volume.

Fatigue

Repetitive mechanical cycling of a large-format pouch foil envelope creates severe localized strain at the perimeter heat seals and current collector tab joints. As the cell core expands and contracts along its thickness axis, the aluminum-laminated pouch material flexes along its folded edges. Pouch foil consists of an outer polyamide layer, a central aluminum moisture and gas barrier, and an inner cast polypropylene heat-seal layer.

Repeated flexure induces cyclic bending strains that concentrate at the seal transition zone, where the polymer seal thins down to join the flat packaging border.

Sulfide-based pouch cells operating above three milliamperes per square centimeter demand 1.5 megapascals of uniform interface pressure at fifty degrees Celsius to prevent macroscopic voiding at the stripping boundary.

Pouch Foil Delamination under Cyclic Breathing

Internal shear stresses between the expanding electrode core and the stationary clamped perimeter stress the adhesive tie layers binding the aluminum barrier foil to the polypropylene sealant. Moisture ingress occurs long before macroscopic rupture. The cast polypropylene layer undergoes micro-crazing under high cyclic tensile strain, allowing ambient water vapor to diffuse toward the active cell stack.

In cells utilizing sulfide-based solid electrolytes, moisture levels above ten parts per million generate toxic, corrosive hydrogen sulfide gas, which acidifies the cell interior, consumes active lithium, and rapidly destroys internal cell capacity.

The aluminum moisture barrier itself remains vulnerable to mechanical failure. Cyclic work-hardening of the zero-temper, forty-micrometer-thick aluminum foil layer leads to micro-fissuring at the pouch corners during deep discharge states, where the fold is pulled tight. Edge seals tear under tension.

When the metal barrier cracks, atmospheric oxygen and moisture ingress rates jump by four orders of magnitude, causing rapid cell failure within fifty cycles.

Tab Connection Degradation and Shear Loading

Current collector tabs extend from the expanding electrode stack through the hermetic seal to connect with external busbars. Cathode tabs comprise aluminum, while anode tabs utilize nickel or nickel-plated copper. The active stack moves relative to the fixed pouch seal during swelling, applying cyclic shear and tensile forces to the internal ultrasonic or laser weld seams joining the current collector foils to the terminal tabs.

Welds weaken over operational lifetimes.

Standard pouch cell production lines clamp the tab seal between metal tooling blocks during the heat-sealing process. If the cell expands in thickness while the busbar connection holds the external tab rigidly in place, the foil stack directly beneath the tab seal experiences fatigue cracking. Copper anode foils, typically six to eight micrometers thick, work-harden and fracture along the ultrasonic weld boundary.

Cell designers accommodate this displacement by forming an internal stress-relief bend in the foil bundle between the electrode stack and the seal block, adding three to five millimeters to pouch header dimensions and reducing active volumetric efficiency.

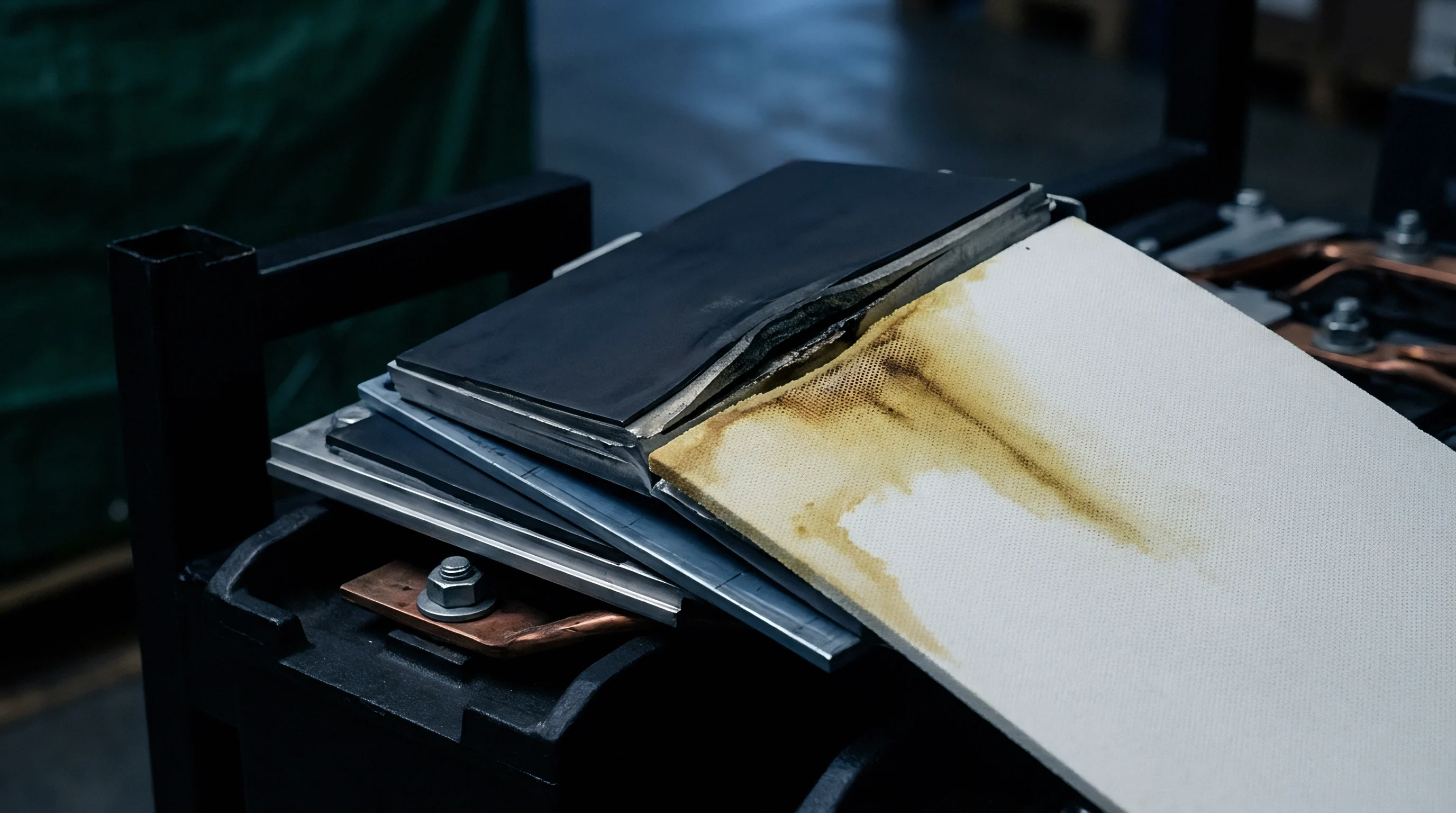

Rigid fixtures crack ceramic separators. When external clamping fixtures restrain the cell perimeter while permitting the active area to expand, huge shear stresses develop at the boundary between active and inactive areas. If internal stresses exceed the yield point of the packaging laminate, the pouch seal peels apart, releasing volatile organic solvents present in liquid-flushed hybrid systems or venting degradation gases in all-solid-state systems, terminating module life through environmental contamination and pressure collapse.

Arithmetic

A working tolerance calculation for a twelve-cell solid-state module illustrates how manufacturing variance compounds active layer expansion. Assume a series stack of twelve sixty-ampere-hour pouch cells, each having a nominal beginning-of-life thickness of 5.20 millimeters with a manufacturing tolerance of plus or minus 0.15 millimeters. The active anode comprises pure lithium metal with an initial thickness of fifty micrometers deposited on a ten-micrometer copper substrate, pairing with a high-nickel layered oxide cathode loaded at four point two milliampere-hours per square centimeter.

Solid electrolyte separators are sulfidic lithium phosphorus sulfur chloride sheets with a nominal thickness of thirty micrometers.

At zero percent state of charge, the active stack thickness per cell measures 5.20 millimeters. During a full charge cycle, twenty-one micrometers of metallic lithium plate onto each anode interface across forty repeating bi-cell units. The total active expansion equals 0.84 millimeters per cell, representing a 16.1 percent state-of-charge breathing expansion.

Across the twelve-cell series, cumulative state-of-charge expansion reaches 10.08 millimeters. Manufacturing tolerances compound this displacement: in a worst-case tolerance stack, cell production variance adds 1.80 millimeters across the twelve cells. Beginning-of-life module active length swings from 60.60 millimeters to 64.20 millimeters across production lots before electrical commissioning begins.

Rigid retention enclosures transfer volumetric expansion directly into internal stress spikes during high-rate charging.

End-of-life degradation mechanisms introduce an irreversible swelling component. Dead lithium accumulation, SEI growth on fresh lithium surfaces, and separator micro-cracking add an estimated 0.35 millimeters of non-recoverable thickness per cell after one thousand cycles. Total end-of-life cell thickness at one hundred percent state of charge reaches 6.39 millimeters.

The retention fixture must absorb both reversible breathing and permanent growth without letting module pressure wander outside the allowable 0.8 to 3.5 megapascal processing window.

The active face area of this sixty-ampere-hour cell measures two hundred millimeters by one hundred fifty millimeters, creating a total surface area of 0.030 square meters. Generating 1.05 megapascals of minimum pressure on this surface demands 31.5 kilonewtons of clamping force. At the end-of-life peak charge state, where internal pressure rises to 3.35 megapascals, the required clamping force reaches 100.5 kilonewtons.

Dimensional creep alters spring preload. If the module structure relies on four high-tensile steel tie rods, each rod sustains 25.1 kilonewtons of tension. Under this stress, standard twelve-millimeter M12 grade 10.9 fasteners stretch by approximately 0.12 millimeters over their free length, contributing compliance back into the mechanical stack.

End plates sized to limit bending deflection to under 0.05 millimeters across their width demand an area moment of inertia that drives their structural mass up. Aluminum 6061-T6 end plates loaded to one hundred kilonewtons require an equivalent plate thickness of thirty-five millimeters. Two such plates add approximately 5.7 kilograms of dead structural weight to the module.

The twelve raw pouch cells weigh approximately 10.8 kilograms in total. Structural clamping hardware adds more than fifty percent to cell core mass, reducing cell-to-module gravimetric energy density from four hundred watt-hours per kilogram down to two hundred sixty watt-hours per kilogram. The arithmetic exposes the trade.

Can thermal management systems integrate structurally into load-bearing end plates to eliminate redundant mass without compromising clamping stiffness?

Seam

Procurement agreements for solid-state cells frequently fail at the interface where electrochemical breathing meets structural pack integration. Cell manufacturers specify cycling longevity and internal resistance values derived from single-cell laboratory test platens. These laboratory fixtures employ pneumatic rams or massive steel dies that enforce perfectly uniform, highly stable mechanical loads regardless of cell expansion.

Pack integrators deploy cells into weight-constrained enclosures where structural compliance limits pressure control. Buyers carry the assembly cost.

Specification sheets omitting cell thickness tolerances at ninety percent state of charge void pack-level pressure maintenance commitments.

Whose Warranty Absorbs Creep Induced Pressure Loss?

A persistent contractual dispute involves settling whether cell degradation stems from internal electrochemical decay or module-level pressure relaxation. If an integrator uses compliant foam that loses twenty percent of its compressive resistance over two years, the minimum interfacial pressure drops below the threshold required to suppress void formation at the lithium-separator boundary. The cell then develops internal lithium dendrites and suffers rapid capacity loss.

The cell vendor denies warranty coverage, citing pack-level failure to maintain interface pressure within specified limits. The pack builder counters that cell thickness growth exceeded the initial specification, bottoming out the module compliance system and driving mechanical pressures into the separator-crushing regime.

To avoid this dispute, clear procurement contracts establish distinct mechanical and dimensional boundaries across five operating parameters:

• Unconstrained Beginning-of-Life Geometry defines allowable cell thickness variations measured between parallel platens under a nominal calibration load of zero point zero five megapascals.
• Maximum Dynamic Expansion Coefficients establish the allowed thickness delta per ampere-hour of charge across specified C-rate and temperature ranges.
• Permanent Growth Allowances state the upper envelope for irreversible thickness growth at specified cycle milestones under prescribed interface loads.
• Module Structural Deflection Limits constrain pack-level end-plate bowing to prevent edge-to-center pressure variance from exceeding agreed tolerances.
• Pressure Operating Envelopes document the absolute minimum and maximum allowable contact pressures across the entire operating temperature window.

Incoming cell lot verification demands high-precision testing protocols. Incoming quality control stations cannot rely on simple mechanical calipers to verify cell thickness. Automated test stations measure incoming pouch dimensions under three distinct pneumatic loads: zero point zero five megapascals to establish the uncompressed envelope, one megapascal to measure cell stiffness, and three megapascals to quantify internal layer compliance.

Incoming cells showing higher mechanical compliance than the baseline specification indicate internal layer delamination, gas generation, or separator density variations. Test data settles the dispute.

Contractual agreements must anchor cell performance commitments directly to module mechanical compliance specifications. Clause 8.3 of standard automotive cell supply contracts ties cycle life guarantees directly to the buyer maintaining cell surface pressure within specified tolerances throughout operation, invalidating warranty claims whenever logged module telemetry shows interfacial load falling outside the agreed limits for more than twenty consecutive operating cycles.
