Quantifying Galvanic Corrosion Kinetics across Battery Pack Busbar Terminations

Mechanics

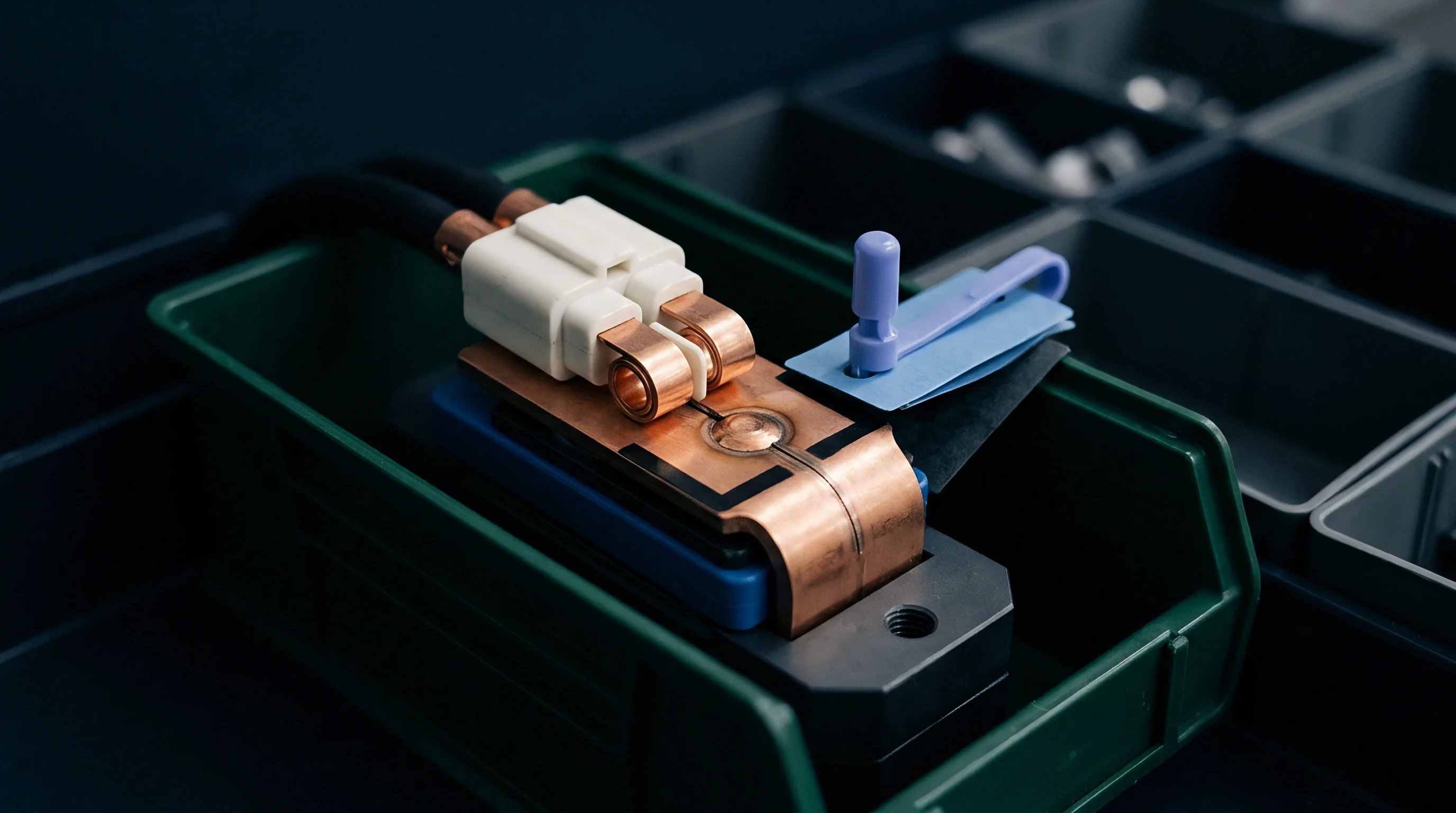

Dissimilar metal interfaces within battery pack enclosures undergo electrochemical degradation when an electrolyte film bridges materials with differing standard electrode potentials. Direct contact between aluminum cell terminals and copper distribution busbars forms a galvanic couple where the potential difference drives active dissolution of the less noble metal. Baseline susceptibility is dictated by thermodynamic driving forces from the aqueous galvanic series.

Aluminum alloy 1050 exhibits an open-circuit potential near minus 750 millivolts against a saturated calomel electrode, whereas pure copper C11000 sits near minus 200 millivolts. This 550-millivolt potential difference sets the theoretical voltage available to overcome kinetic polarization resistance at the interface.

Corrosion rates depend on kinetic parameters described by mixed potential theory rather than thermodynamic potentials alone. Corrosion current density is determined by where the anodic polarization curve of the less noble metal intersects the cathodic curve of the noble metal. Anodic dissolution of aluminum follows Tafel kinetics, with local current density scaling exponentially with activation overpotential.

Cathodic reduction on the copper surface usually proceeds via dissolved oxygen reduction in thin liquid films, constrained by mass transfer through the electrolyte layer. When oxygen diffusion limits the cathodic process, the corrosion rate becomes largely insensitive to minor fluctuations in electrode potential.

A galvanic potential differential exceeding 350 millivolts in humid automotive operating environments drives rapid localized sacrificial anode depletion along unplated aluminum cell terminal interfaces.

The relative surface area between the anodic terminal and cathodic conductor controls localized dissolution rates. Coupling a small anodic aluminum surface to a large copper busbar creates an area imbalance that concentrates current discharge over a narrow zone. This high local current density accelerates penetration into the terminal substrate, leading to rapid section loss and rising contact resistance.

Conversely, expanding the anodic area relative to cathodic contact distributes sacrificial current over a broader boundary, slowing pitting depth rates. Oxidation products accumulating inside the junction further increase electrical contact resistance, elevating joint temperatures during high-current discharge cycles.

Inadequate clamping pressure accelerates joint degradation by allowing micro-voids to trap moisture, converting initial surface corrosion into runaway electrical impedance growth across the pack.

Atmosphere

Liquid water accumulates on internal pack conductors through condensation whenever enclosure temperatures drop below the dew point of the internal air volume. While IP67 or IP69K environmental sealing ratings prevent bulk liquid ingress, moisture vapor still permeates elastomeric gaskets over multi-year service lives. When internal humidity exceeds seventy percent relative, adsorbed water forms a thin electrolyte film over metal surfaces.

Dissolved salts ~ such as trace airborne chlorides or residual processing flux ~ increase the ionic conductivity of this film. Moisture film thickness governs both ionic resistance along the conduction path and the diffusion distance for dissolved oxygen reaching the cathode.

Electrolyte Film Dynamics

Film thicknesses under one micrometer restrict ionic transport, suppressing total galvanic current despite high oxygen availability. As film thickness approaches one hundred micrometers, ionic conductivity rises sharply while oxygen diffusion remains adequate, driving localized corrosion current to a peak. Beyond a thickness of one millimeter, bulk liquid behavior takes over and restricted oxygen diffusion limits the cathodic reaction rate.

Temperature variations alter these kinetics through the Nernst relationship and Arrhenius acceleration of charge transfer reactions, while thermal cycling causes breathing across seal lines that continuously pulls fresh moisture and contaminants into the enclosure.

Atmospheric condensate thickness governs whether oxygen transport or ionic conductivity controls the overall rate of galvanic metal dissolution.

Galvanic degradation acceleration models incorporate relative humidity, temperature, and contaminant concentrations. Peck’s relationship models kinetic acceleration using an Arrhenius temperature factor paired with a power-law relative humidity term. However, kinetic parameters from accelerated laboratory tests often overestimate field longevity if testing uses continuous wetness instead of realistic wet-dry cycles.

Periodic drying phases concentrate dissolved ions within the shrinking liquid film, initiating severe pitting before drying completes. Subsequent re-wetting dissolves corrosion products, exposing fresh substrate to further galvanic attack.

Internal condensation often represents an operating condition outside standard pack specifications, accounting for premature terminal failure in severe environments.

Diagnostic

Quantifying joint degradation kinetics requires electrochemical testing configured for thin-film atmospheric conditions rather than conventional bulk immersion. Standard zero-resistance ammetry measures real-time galvanic current between coupled dissimilar alloys without applying external voltage bias. Combining zero-resistance ammetry with localized electrochemical impedance spectroscopy separates charge transfer resistance from electrolyte film resistance.

Meanwhile, electrochemical noise monitoring detects spontaneous current and potential fluctuations, identifying localized pitting before overall joint resistance changes noticeably.

Electrochemical Characterization Parameters

Laboratory evaluation uses polarization resistance measurements to determine corrosion current densities across candidate plating stackups. Measured kinetic parameters for key busbar material couples under standard liquid film exposure highlight these differences:

Polarization measurements show that tin-plated copper reduces galvanic current density against aluminum by an order of magnitude compared to bare copper. The primary mechanism shifts the cathode potential closer to the corrosion potential of the aluminum alloy, minimizing the thermodynamic driving force.

Standard salt spray qualification under ASTM B117 fails to predict field lifetime in battery enclosures because static fog exposure alters the electrolyte film thickness compared to cyclic humidity condensation.

Corrosion degrades both the physical and electrical integrity of busbar connections over extended field service. Critical failure modes in dissimilar metal terminations exposed to corrosive environments include:

• Galvanic Pitting at Pinholes concentrates anodic current discharge through plating defects, causing deep localized substrate degradation.
• Intermetallic Phase Dissolution preferentially attacks brittle copper-aluminum compounds formed during high-temperature thermal joining.
• Crevice Electrolyte Trapping retains capillary liquid within microscopic gaps, maintaining active corrosion during dry external conditions.
• Blistering Under Plating Spatter lifts protective metallic coatings away from the substrate due to internal corrosion product volume expansion.

Accelerated corrosion testing requires cyclic humidity and salt mist exposure per ISO 16750-4 to properly mirror vehicle pack environments. Static salt spray tests like ASTM B117 produce continuous thick electrolyte films that impede oxygen transport, yielding unrealistically low corrosion rates for cathodic-controlled systems. In contrast, dry phases during cyclic testing cause salt crystallization, creating severe localized osmotic pressure gradients upon re-wetting.

Measuring joint voltage drop at high discharge current before and after cyclic exposure serves as the direct metric for qualification.

Establishing the precise impedance threshold that separates acceptable joint aging from thermal runaway risk during peak discharge remains essential for long-term safety validation.

Welding

Direct thermal joining of copper distribution busbars to aluminum cell terminals eliminates mechanical fasteners but introduces complex metallurgical interfaces. Infrared laser welding melts both metals, creating a localized pool that solidifies into mixed solid solutions and intermetallic compounds. Copper-aluminum binary systems form distinct phases during solidification, including CuAl2, Cu9Al4, and CuAl.

These intermetallic phases exhibit open-circuit potentials distinct from both pure aluminum and pure copper, forming micro-galvanic cells within the weld seam.

Why Intermetallic Phases Accelerate Localized Galvanic Attack

Intermetallic phase boundaries in the fusion zone feature high free energy and fine grain structures that act as preferential paths for electrochemical dissolution. Theta-phase CuAl2 behaves cathodically relative to the adjacent alpha-aluminum matrix, driving preferential trenching of the matrix immediately adjacent to intermetallic precipitates. High electrical conductivity in the surrounding copper substrate accelerates this localized micro-galvanic action.

As the matrix dissolves, intermetallic grains loosen and detach, leaving structural micro-voids that raise electrical resistance and compromise mechanical shear strength.

Controlling heat input during laser welding minimizes total intermetallic layer thickness across the weld interface. Beam wobbling and spatial power modulation distribute energy to restrict intermetallic layer growth below two micrometers. Post-weld cooling rates dictate phase selection; rapid quenching suppresses formation of the brittle, electrochemically active Cu9Al4 phase.

Surface cleaning before laser processing removes native oxides, preventing inclusions that trigger pitting during moisture condensation.

According to standard engineering provisions in ISO 2178, non-magnetic coatings applied over metallic substrates require minimum thickness verification across three sample points to ensure corrosion protection continuity across mass production lots.

Barrier

Mitigating galvanic corrosion at battery termination joints relies on engineered plating barriers, organic sealants, and controlled joint geometry. Electroplated coatings serve as sacrificial layers or physical barriers isolating dissimilar base metals from common electrolyte contact. Electroless nickel plating with high phosphorus content (8 to 12 percent phosphorus by weight) produces an amorphous structure without grain boundaries, offering strong resistance to chemical attack.

Tin plating provides a soft, low-resistance interface that deforms under clamping pressure, filling microscopic contact voids while maintaining a low galvanic potential difference against aluminum.

Plating Qualification Protocol

Quality assurance protocols require verification of plating integrity and environmental durability before components enter module production lines. Busbar plating stock is qualified through a four-step sequence:

1. Measure initial plating thickness across ten critical contact surfaces using micro-X-ray fluorescence spectroscopy.
2. Perform cross-sectional metallographic polishing to verify intermetallic layer thickness and thermal stress cracks.
3. Subject joint samples to temperature humidity bias testing at eighty-five degrees Celsius and eighty-five percent relative humidity for five hundred hours.
4. Quantify contact resistance increase under three-point voltage drop measurements before and after atmospheric exposure.

Conformal coatings and potting compounds provide physical isolation, preventing liquid water films from bridging dissimilar metals. Fluorosilicone gels and UV-curable acrylic coatings seal joint perimeters, blocking moisture ingress even under severe thermal shock. The sealant must adhere tightly to both aluminum and copper without releasing acidic compounds that accelerate corrosion.

Low-viscosity formulations flow by capillary action into narrow gaps between busbars and terminal surfaces, displacing air voids that would otherwise collect condensate.

Plating pinholes smaller than ten micrometers create localized galvanic cell ratios that concentrate pitting attacks directly into the structural core of copper terminals.

Procurement specifications for busbars must establish clear acceptance criteria for material interfaces, plating tolerances, and environmental durability. Key parameters required in a busbar Request for Quotation include:

• Substrate Surface Preparation Limits enforce maximum allowable oxide film thickness and organic residue limits before plating deposition.
• Diffusion Barrier Thickness Tolerances establish minimum nickel underlayer depth to prevent copper migration to the outer tin contact surface.
• Post-Weld Passivation Requirements mandate chemical neutralization steps to remove flux residues and unreacted etch chemicals after joining.
• Contact Resistance Drift Limits define the maximum allowable electrical impedance increase following environmental stress qualification testing.

Commercial liability boundaries between cell vendors and pack integrators depend on precise specification of terminal contact interfaces and environmental sealing parameters within the procurement contract.

Plating thickness selection balancing cost and corrosion life follows the rule that double the barrier thickness yields four times the corrosion wear life under constant atmospheric condensation conditions.
