Differential Capacity Analysis for Aging Characterization in Commercial LFP Cells

Peak

Constant-current cycling curves carry clear, if quiet, markers of electrode aging. In commercial lithium iron phosphate cells, raw voltage plots against capacity are notoriously flat across most of the cycle, reflecting two-phase co-existence as lithium moves through the olivine lattice. Plotting differential capacity ~ taking the derivative of charge capacity against terminal voltage ~ turns those broad plateaus into sharp, readable peaks that map directly to phase changes in the cathode and graphite anode.

Because voltage derivatives expose structural damage long before a standard discharge test registers capacity fade, the technique functions as an early warning diagnostic. On a fresh cell, differential peaks line up neatly with discrete staging transitions in the graphite anode alongside the two-phase iron phosphate transition around 3.42 volts against lithium metal. As the cell degrades, those peaks shift in position and shrink in area, each movement tied to a specific physical fault.

At a discharge rate of C/20 and an ambient test temperature of 25 degrees Celsius, differential capacity peaks resolve individual graphite intercalation stages down to two millivolt resolution.

When active lithium is lost to solid electrolyte interphase growth or plated onto graphite, the host lattices themselves generally survive unharmed, but the working lithium pool contracts. Electrodes simply slip out of alignment: the cathode’s differential profile stays largely intact while drifting horizontally along the state-of-charge axis relative to the anode. The corresponding full-cell peaks lose height and track sideways as available capacity falls away.

Thermodynamic Origins of Differential Peaks

Iron phosphate lithiation produces sharp thermodynamic boundaries at the charge and discharge limits, while the graphite negative electrode steps through Stage 4 down to Stage 1. At full lithiation in Stage 1, one lithium ion sits among every six carbon atoms. The transition from Stage 2 to Stage 1 generates a distinct signature near 0.12 volts versus lithium, though picking it out in a full cell demands low-noise measurements taken close to thermodynamic equilibrium.

Loss of active material on either electrode distorts the curve in distinct ways. Losing positive active mass cuts the total area under the differential features while leaving graphite staging alignments undisturbed. Losing negative active mass, by contrast, chokes off carbon storage capacity; if graphite capacity drops below cathode capacity, the anode saturates early during charge, sharply increasing the risk of lithium plating.

Disentangling the two comes down to tracking peak area ratios as cycles accumulate.

Separating Lithium Inventory Losses from Active Material Decay

Distinguishing inventory depletion from host breakdown requires fitting full-cell curves back to half-cell reference data, something nominal capacity retention tests cannot manage alone. A cell short on lithium inventory still has vacant intercalation sites in both electrodes, meaning lost capacity can technically be regained by adjusting voltage windows or adding lithium. Host structural damage, however, destroys storage sites outright and cannot be recovered electrically.

Peak symmetry and spacing make this distinction visible. When high-voltage peaks shrink without shifting shape, the cause is almost purely lithium inventory loss. If low-voltage features broaden while losing area, the graphite lattice itself is breaking down.

Screening programs routinely rely on these peak height ratios to rank degradation severity across incoming lots.

Tracking peak area stability provides a direct gauge of electrode condition during the earliest operational cycles.

Bench

Derivative signatures demand low-noise electronics and exceptional hardware stability. Resolving differential capacity reliably requires voltage resolution tighter than 100 microvolts and current accuracy within 0.01 percent of full scale. Standard battery cyclers often fall short here: low-resolution analog-to-digital converters produce step-like quantization errors that blow up into artificial spikes during numerical differentiation.

Thermal stability is equally critical, as ambient swings translate directly into apparent voltage drift.

Current density sets the practical boundary between test duration and data fidelity. Aggressive C-rates generate ohmic drops and kinetic polarization that blur adjacent phase transitions. Running tests at C/20 or C/50 keeps overpotentials small enough to expose clean thermodynamic plateaus, though faster screening routines often compromise at C/5 or C/10 by applying reconstruction algorithms to approximate equilibrium profiles.

Differentiating unconditioned voltage data with raw finite-difference formulas simply amplifies channel noise, line ripple, and quantization noise into illegible hash. Meaningful analysis requires smoothing the signal before or during differentiation, balancing noise reduction against the risk of artificially flattening real physical peaks.

Current Density Thresholds and Kinetic Distortion

Internal resistance growth pulls charge and discharge features apart along the potential axis. Ohmic drop suppresses measured voltage on discharge and elevates it during charge, creating an apparent hysteresis between the two profiles. Subtracting internal resistance ~ derived from instantaneous current-interruption steps or electrochemical impedance spectroscopy ~ brings both curves back into thermodynamic alignment.

Cold temperatures amplify kinetic distortion by retarding lithium solid-state diffusion and lowering electrolyte conductivity, which broadens staging peaks considerably. Reliable diagnostics standardize cycling at 25 degrees Celsius; even a 2 degrees Celsius drift can shift peak coordinates enough to mislead automated tracking routines.

Smoothing Algorithms and Window Parameter Selection

Savitzky-Golay filtering smooths local data by fitting moving polynomials via least squares, but window sizing requires care. An overly narrow window lets high-frequency spikes trigger false peak detections, while an excessively broad window clips sharp graphite transitions, obscuring active material decay.

1. Data logging sets uniform voltage sampling intervals at exact 1.0 millivolt increments via linear interpolation across raw galvanostatic records.
2. Initial noise filtering applies a moving-average filter across current logs to verify constant current delivery throughout the test window.
3. Polynomial fitting executes a second-order Savitzky-Golay filter with a 15-point window width directly on the resampled voltage-capacity curve.
4. Derivative calculation performs central finite differences across smoothed capacity vectors against the voltage step array.
5. Peak extraction identifies localized gradient zeroes to log exact peak voltages, peak heights, and enclosed peak areas.

IEC 62619 compliance mandates continuous safety monitoring during low-rate diagnostic cycling to prevent thermal events in suspect cells.

Failing to calibrate test hardware before differentiation undermines automated degradation screening across supply chains. In transit disputes, minor potential deviations are frequently dismissed as channel noise rather than true cell aging. Incoming audit rejections treat peak attenuation as structural cell decay, whereas technical rebuttals attribute identical signal loss to measurement hardware error.

Shift

Following peak coordinates over thousands of cycles separates kinetic shifts from thermodynamic fade. Voltage displacement primarily reflects cell impedance growth: as the solid electrolyte interphase thickens, interfacial resistance increases, pushing operating voltages away from open-circuit equilibrium and shifting derivative peaks outward.

Peak area shrinkage directly quantifies capacity lost to specific electrode processes. In LFP cells, the primary discharge feature near 3.40 volts reflects concurrent cathode lithiation and graphite de-lithiation. Integrating the area under this single peak provides a reliable snapshot of remaining capacity without running full, time-consuming discharge cycles across entire manufacturing lots.

How Does Noise Filtering Distort Peak Magnitudes?

Over-filtering suppresses peak amplitudes and artificially broadens feature profiles. Heavy low-pass filters and aggressive smoothing splines erode the sharp boundaries of graphite Stage 1 transitions; excessive smoothing can clip maximum differential capacity peaks by up to 12 percent. Filter settings require benchmarking against synthetic profiles with known noise levels before running production data through automated pipelines.

Gaussian process regression avoids fixed-window trade-offs by treating voltage curves as continuous non-parametric distributions, yielding derivatives alongside analytical confidence intervals. That explicit uncertainty quantification helps quality control systems flag ambiguous profiles for engineering review, though computational overhead restricts the method to offline audits rather than embedded battery management firmware.

Graphite Staging Displacements and Electrode Alignment

Structural aging in the anode changes the spacing between graphite staging peaks. Repeated insertion strains the carbon matrix, generating microcracks and exfoliating graphene layers until high-order staging signatures merge into a broad, indistinct curve. Once graphite degrades severely, localized potential drops trip lower cutoff thresholds prematurely.

Plotting the inverse derivative ~ differential voltage, or dV/dQ, against capacity ~ offers a complementary perspective. Rather than peak heights, dV/dQ tracks the capacity consumed between specific phase transitions. Shifting and scaling half-cell reference profiles to match these full-cell features yields quantitative boundaries for both lithium inventory and electrode mass retention.

• Lithium Trapping Signature appears as an overall drop in peak area paired with a uniform horizontal offset across all voltage markers.
• Graphite Exfoliation Feature causes the Stage 1 intercalation peak near the end of discharge to collapse entirely.
• Cathode Particle Cracking steadily attenuates the main 3.42-volt feature without disturbing graphite staging positions.
• Ohmic Resistance Growth drives charge and discharge peaks symmetrically apart from true open-circuit potentials.

A key unresolved question is whether non-uniform current density across large prismatic jelly rolls causes localized aging gradients that skew the composite differential signals measured at the external terminals.

Arithmetic

Isolating the root causes of capacity fade requires solving simultaneous balances built on differential curve parameters. In a commercial 100 Ah LFP prismatic cell cycled at 45 degrees Celsius, baseline C/20 characterization registers 104.5 Ah of discharge capacity and a primary peak area of 82.1 Ah/V at 3.385 V. After 1,500 cycles, discharge capacity falls to 88.8 Ah ~ a net loss of 15.7 Ah.

Deconvolving these curves maps the metrics back to physical mechanisms. The secondary graphite staging area drops from 24.2 Ah/V to 18.1 Ah/V, and polarization shifts the primary voltage feature downward by 18 millivolts. Mass balance calculations allocate 11.2 Ah of the drop to lost lithium inventory, 3.1 Ah to graphite active mass decay, and 1.4 Ah to positive electrode degradation.

Deconvolution Math for Commercial Prismatic Formats

Peak metrics translate to physical state variables through basic conservation laws. Integrating the shift in differential capacity across the working voltage window yields total trapped lithium, leading to the governing capacity balance:

Delta Q_total = Delta Q_LLI + min(Delta Q_LAM_NE, Delta Q_LAM_PE)

Fitting routines match experimental curves against synthetic profiles reconstructed from fresh half-cell reference data. The anode scaling factor gives negative electrode mass retention, the cathode scaling factor gives positive electrode retention, and the horizontal translation needed to bring the reconstructed curve into register yields lost lithium inventory directly.

Quantitative Degradation Model for Aged Cell Lots

Attribution models are sensitive to baseline instrumentation errors. An offset of just 1.0 millivolt in peak position introduces a 2.3 percent error into calculated lithium inventory loss. When cycler channels drift uncalibrated, algorithms tend to overestimate active mass decay at the expense of lithium trapping, making rigorous hardware calibration essential for any binding technical audit.

1. Establish baseline reference profiles by performing low-rate C/50 discharge cycles on three unaged master reference cells at 25.0 degrees Celsius.

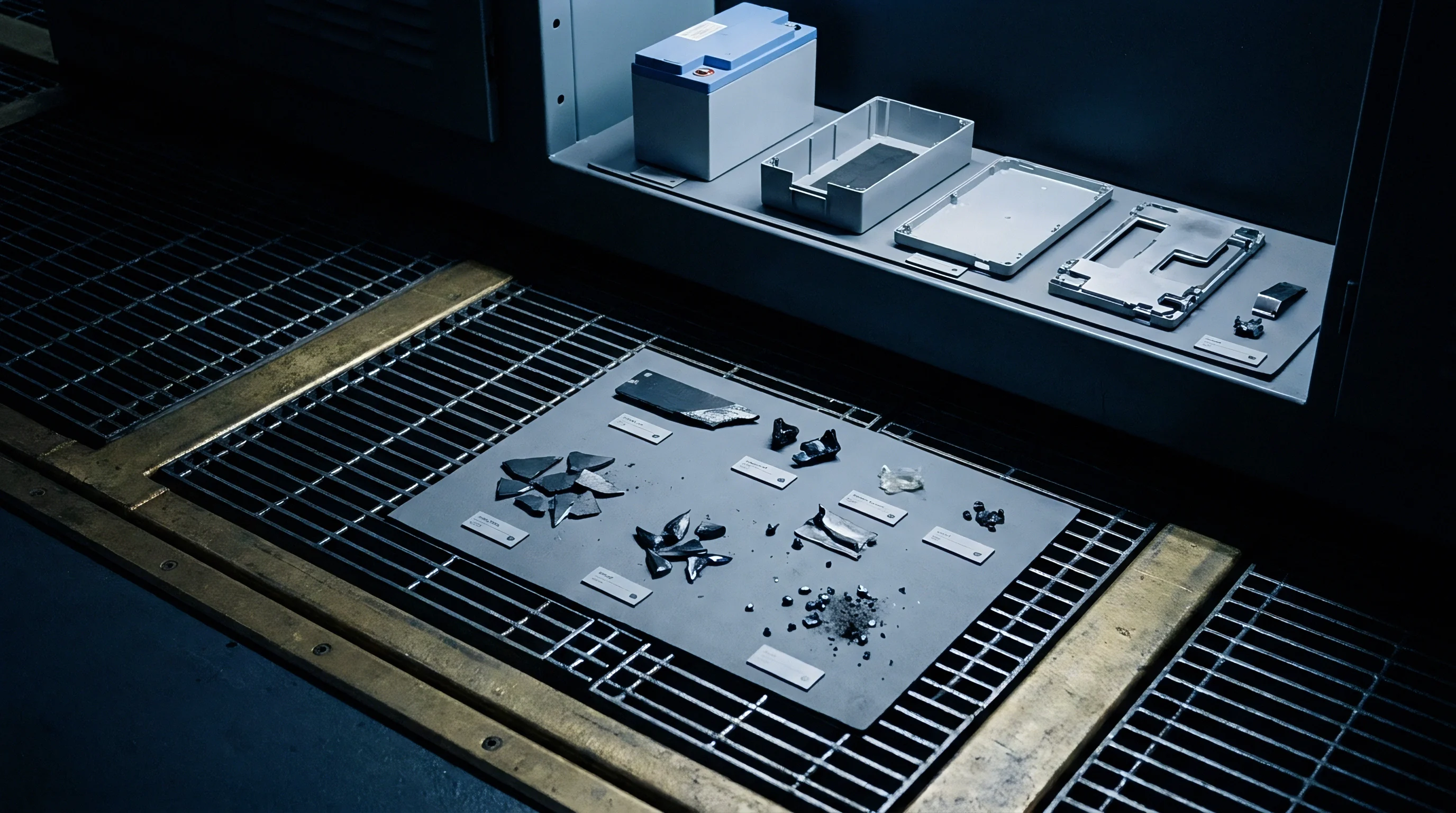

2. Extract half-cell potential curves from reference cell teardowns or calibrated open-circuit voltage databases.
3. Record diagnostic C/20 discharge data on target cell samples harvested from production lots or warranty returns.
4. Apply Savitzky-Golay filtering using a 2nd-order polynomial and 15-point window to calculate smoothed dQ/dV spectra.
5. Execute non-linear least-squares optimization to solve for electrode scaling factors and horizontal voltage slip values.
6. Output quantitative percentages for lost lithium inventory, negative electrode degradation, and positive electrode structural decay.

Sizing storage installations based on simple capacity retention curves leaves operators vulnerable to sudden, non-linear degradation knees later in life, driving up premature warranty liabilities.

Recourse

Energy storage procurement contracts increasingly require non-destructive health diagnostics beyond headline capacity. Basic capacity retention metrics cannot detect the onset of secondary aging knees, prompting sophisticated buyers to write contracts that cap annual lithium inventory loss and set explicit boundaries on electrode structural decay. Differential capacity metrics provide the technical baseline needed to enforce those terms.

EU Battery Regulation 2023/1542 introduces mandatory battery passport logging for industrial and electric vehicle packs exceeding 2 kWh. Systems must track state of health, capacity fade, resistance growth, and round-trip energy efficiency across active service life. Running differential capacity routines on onboard edge processors offers a practical method to satisfy these passport updates without taking packs offline for full laboratory discharge testing.

Contractual Capacity Warranties and Evidence Dossiers

Enforcing warranty terms requires technical documentation capable of withstanding scrutiny from cell manufacturers. Field rejections frequently hit an impasse when suppliers blame capacity drops on thermal excursions, operational misuse, or uncalibrated test benches. Presenting differential dossiers that separate baseline lithium inventory consumption from structural host collapse eliminates much of that ambiguity.

Incoming inspection programs use differential screening to catch defective production batches before modules are assembled into high-voltage packs. Running 100 percent C/20 characterization would bottleneck the pack line, so standard quality protocols sample five cells per incoming lot against a master baseline. Acceptance hinges on derivative peak metrics staying within defined statistical process control limits.

Regulatory Compliance and Dangerous Goods Certification

Cross-border transport of aged or recalled lithium cells faces rigorous regulatory oversight. The UN Manual of Tests and Criteria Section 38.3 mandates survivability under mechanical shock, vibration, thermal abuse, and external short circuits. Declaring returned or second-life cells under UN 3480 or UN 3481 requires verifiable proof that units are free of internal structural failures that elevate transport hazard.

Commercial supply agreements incorporating explicit differential capacity aging thresholds reduce legal dispute durations by establishing objective technical evidence standards.

A UN 38.3 Test Summary must accompany battery consignments through international transit hubs. Forwarders routinely reject cargo missing verified safety records or showing state-of-health degradation beyond permissible safety limits. Under Clause 4.2 of typical utility-scale supply agreements, demurrage and customs detention charges shift directly to the seller whenever shipments are held for unverified safety filings or defective health records.
