Multiaxial Viscoelastic Relaxation Modeling for High Nickel Prismatic Cell Module Swelling Control
Multiaxial viscoelastic relaxation modeling enables precise prediction of inter-cell force decay and structural endplate loads in high nickel battery modules.
Constraint

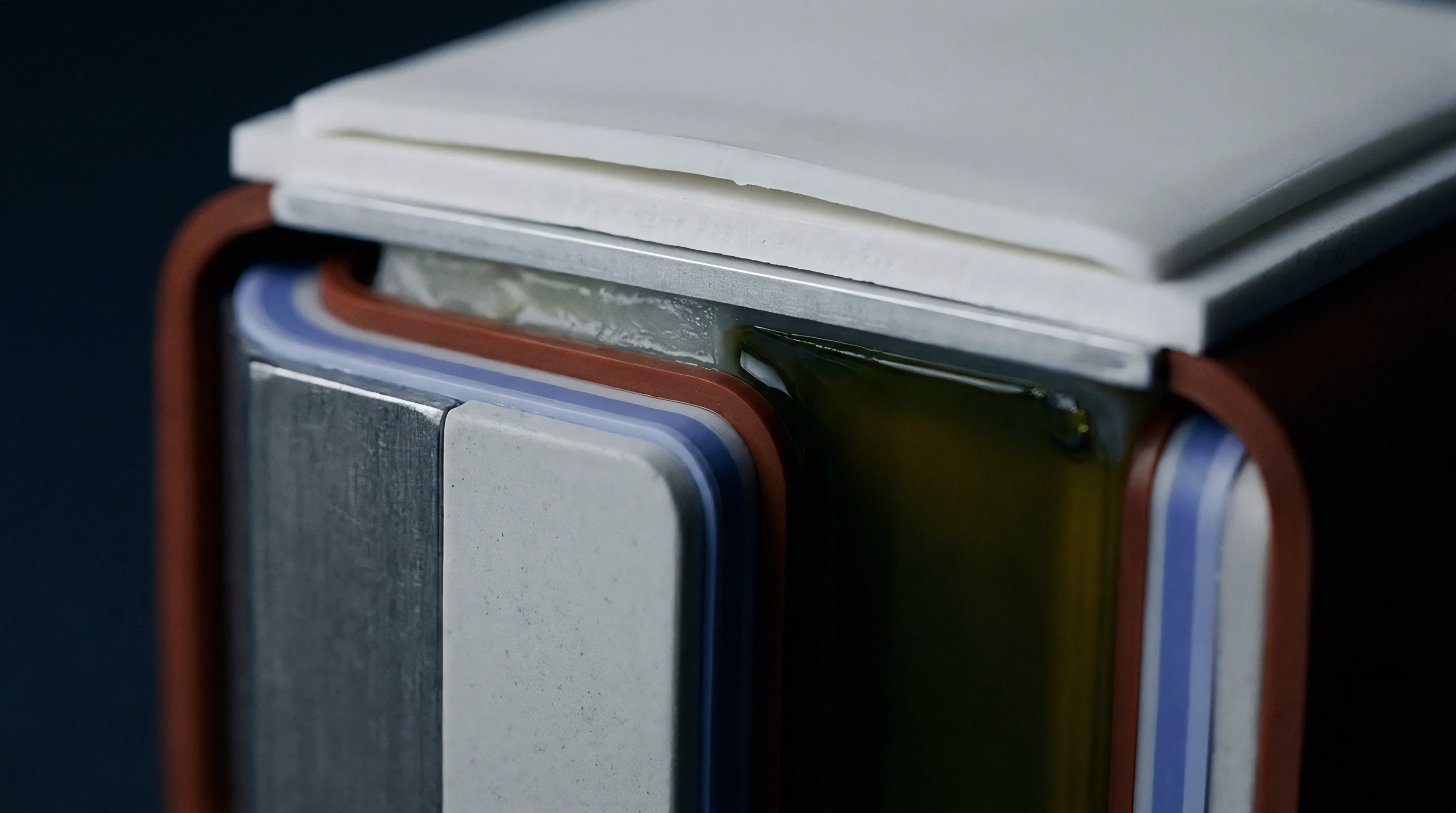

Anisotropic Strain Vectors in High Nickel Prismatic Chemistries
Layered transition metal oxide cathodes containing high nickel fractions experience anisotropic dimensional expansion during lithium extraction. Phase transitions occurring above 4.15 V against lithium reference potentials drive lattice contraction along the c-axis alongside volumetric shifts across the crystallographic planes. In lithium nickel manganese cobalt oxides with nickel contents exceeding 80 percent, the micro-cracking of secondary particles releases stress locally while shifting bulk dimensional expansion to the exterior cell casing.
Anode materials amplify this kinetic volume change. Silicon oxide blended into synthetic graphite anodes expands up to 300 percent at full lithiation states, leaving residual plastic deformation inside the pore structure after discharge. High nickel prismatic cells packaged in aluminum alloy cans translate this internal particle motion into macroscopic planar swelling against module endplates.
| Cathode Stoichiometry | Anode Silicon Content | Reversible Planar Strain | Irreversible Strain at 1000 Cycles | Peak Swelling Pressure Range |
|---|---|---|---|---|
| Li Ni0.80 Mn0.10 Co0.10 O2 | 0 wt% SiOx | 1.8 to 2.4 percent | 1.2 to 1.6 percent | 0.15 to 0.35 MPa |
| Li Ni0.85 Mn0.05 Co0.10 O2 | 3 wt% SiOx | 2.5 to 3.2 percent | 2.1 to 2.8 percent | 0.40 to 0.65 MPa |
| Li Ni0.90 Mn0.05 Co0.05 O2 | 5 wt% SiOx | 3.4 to 4.2 percent | 3.5 to 4.6 percent | 0.70 to 1.10 MPa |
| Li Ni0.92 Co0.06 Al0.02 O2 | 7 wt% SiOx | 4.0 to 4.8 percent | 4.8 to 5.9 percent | 1.15 to 1.55 MPa |
Reversible and Irreversible Lattice Swelling Kinematic Bounds
Reversible expansion tracks cell state of charge directly, driven by staging phenomena inside the graphite host matrix. Irreversible growth accumulates over extended cycling as solid electrolyte interphase layers thicken and isolated lithium metal deposits on anode particle surfaces. The rate of irreversible growth speeds up under low temperature charging conditions where kinetic overpotentials induce localized lithium plating.

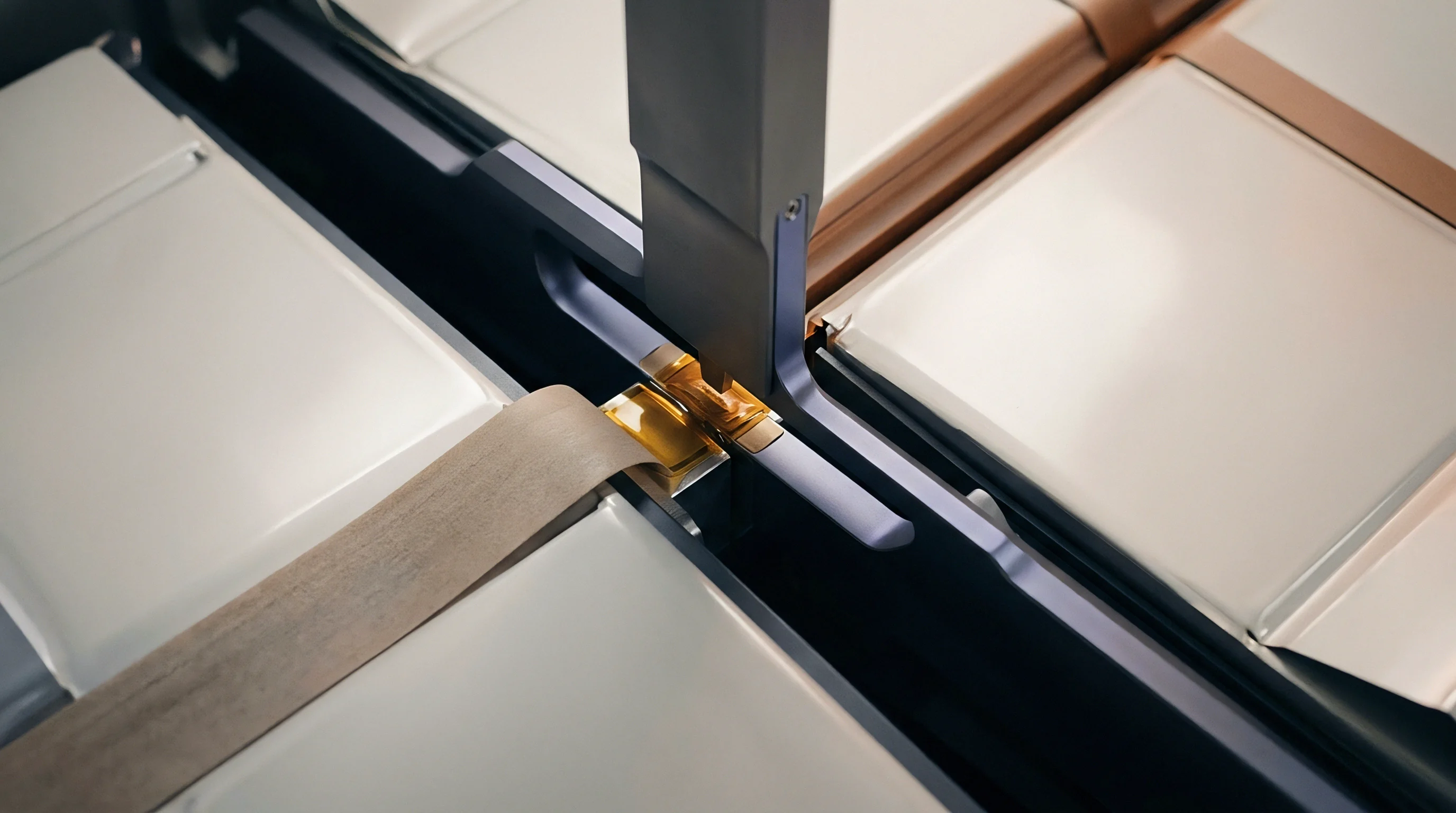

Module designs must bound both expansion vectors to prevent structural overload. Unconstrained cell expansion deforms inter-cell cooling plates, distorts electrical busbars, and fractures ultrasonic wire bonds at cell terminals. Rigid mechanical confinement suppresses macroscopic swelling but converts chemical strain into high internal pressure.
Peak internal pressures accelerate active material isolation, causing localized capacity fade and micro-short circuit hazards.
Applying insufficient initial pre-load allows cell faces to flex during heavy discharge pulses. This breathing motion generates shear stresses at the internal tab-to-jellyroll weld interfaces, causing fatigue cracking of the copper current collectors over operational lifespans.
Foam
Silicone and Polyurethane Compression Pad Response Curves
Inter-cell buffer materials modify how expanding cell cans transfer force to module tie rods. Open-cell polyurethanes, microcellular elastomers, and silicone formulations exhibit non-linear stress-strain relationships marked by three distinct regions: linear elasticity, a stress plateau, and a steep densification zone. Elastomeric response curves must remain within the plateau region across the cell lifespan to maintain stable clamping force.
- Microcellular polyurethane collapse under high static compression causes structural cell-to-cell gap loss, leading to localized thermal bridging during runaway events.
- Silicone elastomer densification at maximum cell expansion transfers non-linear stress spikes directly into module endplates, causing structural weld cracking.
- Polyolefin permanent set accumulation reduces initial pre-charge force below critical electrical contact thresholds, increasing terminal junction resistance.
- Fluorosilicone stiffness hardening under low ambient temperatures limits material compliance, accelerating cell can displacement during fast charging.
Elastomeric compression buffers require sufficient void volume to absorb cell expansion without crossing into the steep densification region where internal stress surges.
Temperature Dependent Compression Set and Degradation Modes
Polyurethane formulations undergo physical aging and thermal degradation when exposed to continuous module operating temperatures above 50 degrees Celsius. Continuous elevated temperatures break down cross-linked polymer chains, accelerating permanent compression set. Microcellular structures lose restoring force over time, decreasing the effective counter-pressure applied against cell faces.
Silicone materials maintain mechanical properties across broader thermal ranges, spanning minus 40 degrees Celsius to 120 degrees Celsius. High manufacturing costs and lower tear resistance limit silicone adoption in high volume automotive battery modules. Microcellular EPDM materials offer intermediate thermal performance but exhibit higher creep rates under steady mechanical loading than premium silicones.
| Material Elastomer Grade | Density Range (kg/m3) | Initial Compression Modulus | Compression Set (22h at 70C) | Glass Transition Temperature |
|---|---|---|---|---|
| Microcellular Polyurethane | 240 to 320 | 0.12 to 0.25 MPa | 8 to 14 percent | minus 35 degrees C |
| High-Density Silicone Foam | 350 to 480 | 0.30 to 0.55 MPa | 2 to 5 percent | minus 60 degrees C |
| Cross-linked EPDM Sponge | 200 to 280 | 0.08 to 0.18 MPa | 15 to 22 percent | minus 45 degrees C |
| Fluorosilicone Elastomer | 450 to 600 | 0.60 to 0.90 MPa | 3 to 7 percent | minus 50 degrees C |
Selecting inter-cell buffer thickness requires balancing module volumetric energy density against mechanical compliance margins. A thin pad limits initial module size but drives rapid stress build-up as cells swell over operational lifespans.
Viscoelasticity
Prony Series Formulation for Multi Rate Stress Decay
Time-dependent material behavior in polymer compression pads requires viscoelastic constitutive equations to predict long-term stress relaxation inside constrained battery modules. The linear viscoelastic response is expressed through Boltzmann superposition integrals. The relaxation modulus functions across discrete time domains through Maxwell element networks arranged in parallel.
Mathematical representation uses the Prony series expansion:
E(t) = E_infinity + Sum
Where E_infinity represents the long-term equilibrium modulus, E_i represents the relaxation strength of the i-th Maxwell element, and tau_i defines the characteristic relaxation time constant for that element. Accurately capturing relaxation dynamics across operational lifetimes requires four to six Maxwell terms spanning time scales from 10 to the minus second power seconds up to 10 to the eighth power seconds.
Relaxation testing over 1000 hours at 45 degrees Celsius demonstrates that polyurethane buffer pads lose up to 40 percent of initial clamping stress within the first 100 operational cycles.
Thermal Activation and Time Strain Superposition Mechanics
Temperature changes shift the timescale of viscoelastic relaxation processes without altering the underlying deformation mechanics. Thermally rheologically simple polymers follow the Time-Temperature Superposition principle, shifting experimental relaxation curves along the logarithmic time axis using temperature shift factors.
| Maxwell Element (i) | Relaxation Modulus E_i (MPa) | Relaxation Time tau_i (s) | Normalized Weight Fraction |
|---|---|---|---|
| 1 | 0.085 | 1.0E+01 | 0.242 |
| 2 | 0.062 | 1.0E+03 | 0.177 |
| 3 | 0.048 | 1.0E+05 | 0.137 |
| 4 | 0.035 | 1.0E+07 | 0.100 |
| Equilibrium (infinity) | 0.121 | Infinity | 0.344 |
Shift factors follow Williams-Landel-Ferry kinetics near glass transition temperatures, while Arrhenius relationships govern response ranges above glass transition regions. The Arrhenius shift factor equation takes the explicit form:
a_T = exp
Where E_a defines activation energy, R represents the universal gas constant, T defines operational absolute temperature, and T_ref specifies the reference calibration temperature. Correct activation energy determination prevents underestimating relaxation rates during sustained hot weather cycling.
Calculating compressive force decay under dynamic module conditions involves coupling temperature-dependent Prony parameters with transient thermal solver outputs. Under continuous cycling, inter-cell pads experience cyclic strain inputs superimposed over steady creep accumulation, generating multi-axis stress distributions inside module housings.
Tensor
What Limits Long Term Stress Relaxation Prediction?
Three-dimensional stress states develop inside battery modules due to mechanical boundary constraints imposed by side plates, top covers, and end closures. Uni-axial compression testing undercounts lateral expansion effects caused by Poisson ratios approaching 0.48 in dense elastomeric materials. Constraining lateral extrusion increases effective normal stiffness, driving higher endplate forces than unconstrained axial models predict.
Standard UN 38.3 thermal shock testing induces transient swelling force peaks that exceed steady-state room temperature pre-loads by up to 180 percent.
Formulating multiaxial viscoelastic constitutive models requires decomposing stress and strain tensors into spherical and deviatoric components:
sigma_ij(t) = K(t) epsilon_kk(t) delta_ij + 2 G(t) e_ij(t)
Where K(t) represents the time-dependent bulk relaxation modulus, G(t) defines the shear relaxation modulus, delta_ij is the Kronecker delta, and e_ij represents the deviatoric strain tensor. Friction coefficients between cell aluminum casings and pad polymer surfaces modify lateral material flow, altering multiaxial stress distributions across cell faces.

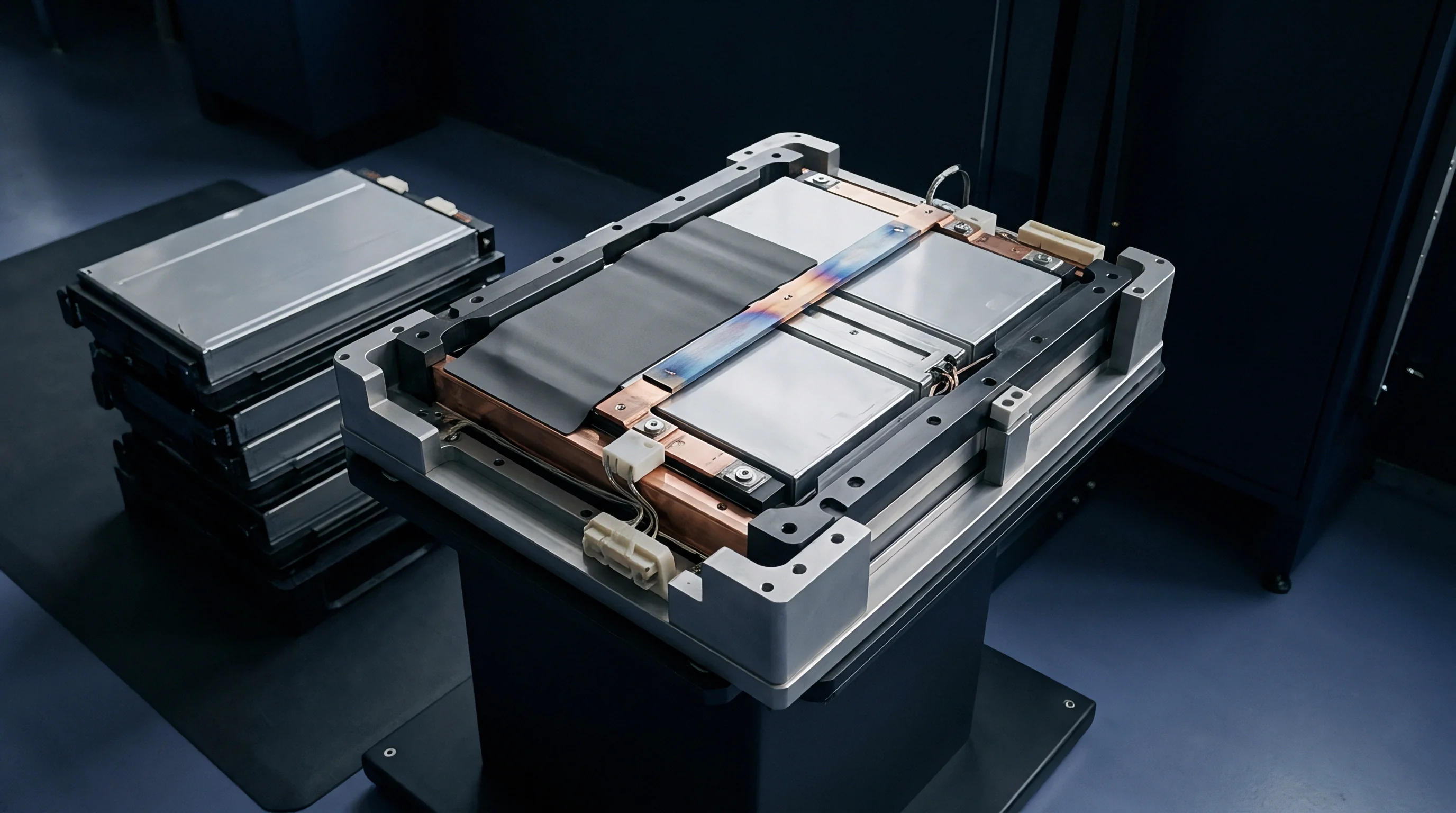

Multiaxial Boundary Coupling in Rigid Tie Plate Enclosures
Module endplates deflect under swelling forces, creating non-uniform strain fields across the prismatic cell surface. Center regions of prismatic cans experience maximum deflection, while cell corners remain constrained by rigid enclosure side walls. Finite element simulations require non-linear structural solvers capable of handling contact friction, geometric non-linearities, and material viscoelasticity simultaneously.
- Quantify bare cell anisotropic expansion profiles across state of charge ranges using multi-point optical laser displacement sensors under zero-load conditions.
- Extract rate-dependent hyperelastic stress-strain curves for inter-cell compression materials using biaxial planar tensile and volumetric compression test benches.
- Calibrate Prony series time-temperature relaxation constants through dynamic mechanical thermal analysis across operational frequency bands.
- Implement constitutive viscoelastic material subroutines within three-dimensional structural finite element models containing full module tie-rod geometries.
- Validate full-scale module swelling predictions against load-cell instrumentation installed within environmental thermal cycling chambers.
Failing to model multiaxial tensor coupling leads to inaccurate predictions of tie-rod thread fatigue and endplate bending moments. Unpredictable stress relaxation profiles raise questions regarding whether numerical convergence issues or physical constitutive shifts dominate long-term model deviations in aged battery modules.
Compliance
Thermal Cycling Protocols under Mechanical Confinement
Type approval testing under international regulations mandates evaluating module structural integrity under harsh environmental exposure. Standard UN 38.3 test T2 Subjects fully assembled pack structures to rapid temperature shifts between 72 degrees Celsius and minus 40 degrees Celsius. Viscoelastic materials undergo rapid stiffness transitions during these thermal swings, causing transient stress spikes that challenge structural enclosure yield margins.
| Regulatory Standard Designation | Environmental Exposure Condition | Mechanical Load Requirement | Pass Criteria Metric |
|---|---|---|---|
| UN 38.3 Test T2 (Thermal) | minus 40C to plus 72C, 6h dwell, 10 cycles | Pre-stressed tie-rod load | Zero mass loss, zero leakage, no rupture |
| IEC 62133-2 Clause 7.3.8 | 55C continuous exposure for 7 days | Internal cell swelling pressure | No enclosure deformation, no vent opening |
| ECE R100.03 Annex 9E | Mechanical shock 28g to 32g pulse | Dynamic module pre-load force | Retention of structural module isolation |
| UL 2580 Section 22 | Thermal cycling with 100 percent SOC | Max irreversible cell expansion | No structural endplate weld failure |
Compliance evaluation requires monitoring internal tie-rod tension during regulatory thermal exposure. Decreasing pre-load force at low temperatures risks cell displacement under vibration, while excessive thermal expansion at upper temperature bounds risks exceeding material yield limits.

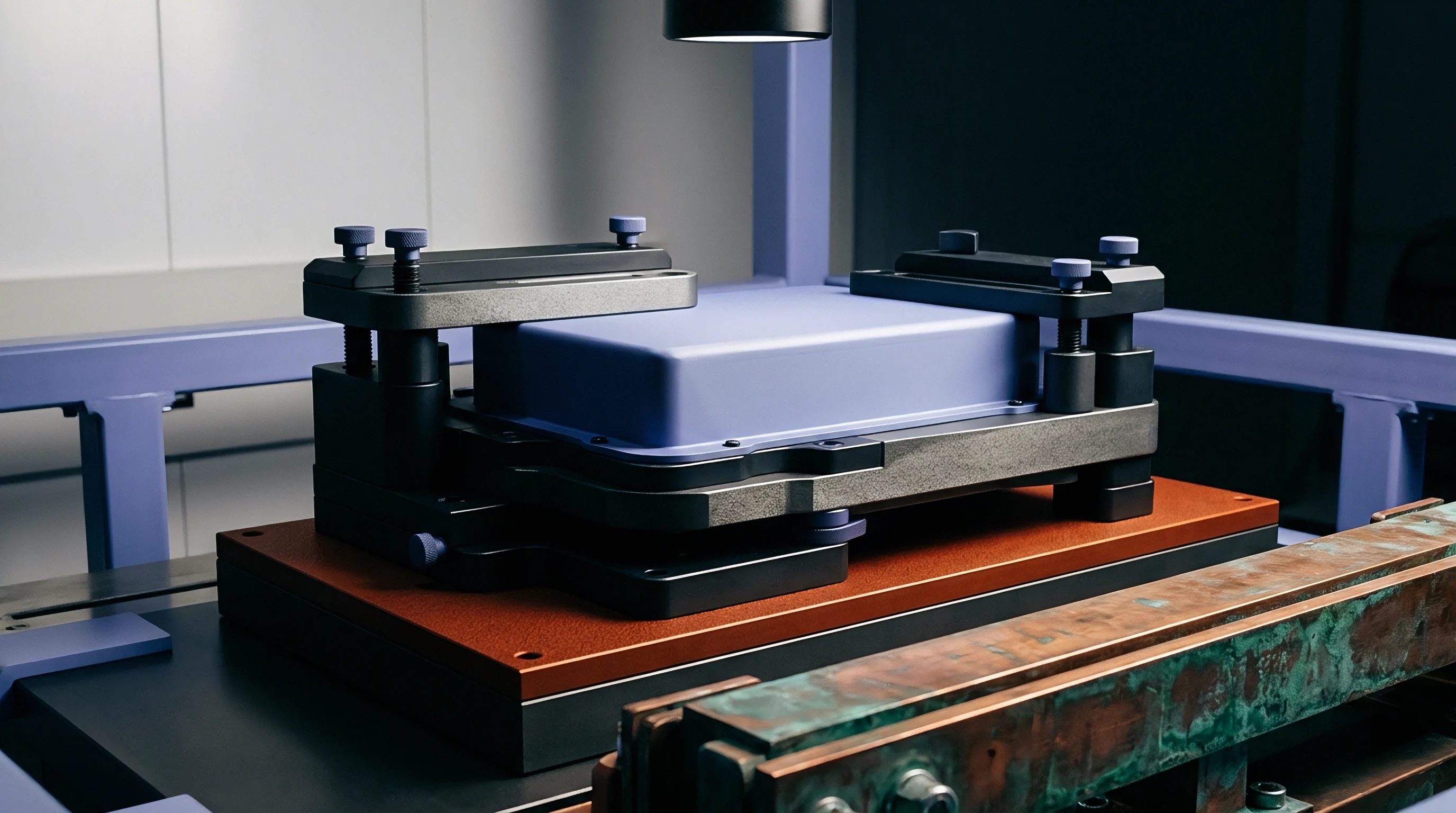

Test Bench Sensor Matrix for Real Time Swelling Force Trace
Validating viscoelastic swelling models requires physical test fixtures equipped with load cell arrays and displacement gauges. Module validation benches measure force distributions across individual cell interfaces while simulating lifetime degradation profiles through accelerated cycling.
- Multi-axis load cell plates record dynamic pressure distribution maps across prismatic cell faces during charge-discharge cycling.
- Laser triangulation sensors measure sub-micron displacement variations along module endplate structures.
- Embedded strain gauge bridges trace real-time tension changes in stainless steel module tie-rods.
- Thermocouple grids track thermal gradients across inter-cell gap spaces to decouple thermal expansion from swelling forces.
Standard commercial warranty terms mandate that structural module enclosures retain cell position integrity without exceeding maximum component pressure limits over 8 years or 3000 full charge cycles.
According to UN Manual of Tests and Criteria Section 38.3.4.2, test units must demonstrate structural integrity without exhibiting disassembly, rupture, or fire during environmental exposure.
Warrant
Tolerance Stack Analysis across Module Mechanical Assemblies
Manufacturing variations in cell can thickness, pad nominal height, and endplate dimensions accumulate across module stacks. A 24-cell prismatic module with a plus or minus 0.3 mm cell thickness tolerance creates a total mechanical stack variation of plus or minus 7.2 mm if left unmanaged. Mechanical tolerance stack-ups alter initial inter-cell pad compression, resulting in non-uniform pre-load forces across production lots.
Quantifying stack variation requires statistical assembly modeling using Monte Carlo simulation techniques. High initial compression increases cell swelling forces early in cycle life, driving premature viscoelastic creep in the inter-cell buffers. Low initial compression leads to cell gapping, reduced heat transfer efficiency to cooling plates, and accelerated electrical contact wear.
Contractual Risk Allocation for Mechanical Swelling Failures
Module mechanical failures caused by cell swelling often create warranty disputes between cell manufacturers, pack integrators, and vehicle OEMs. Clear boundary specifications must define maximum cell force development under defined mechanical compression conditions across specified temperature-time profiles.
Cell integration documentation often states that performance warranties become void if inter-cell mechanical clamping force falls outside specified minimum limits or exceeds maximum endplate resistance limits during operation.
