Incoming Cell Batch AC Impedance Acceptance Standards for Automotive Systems

Gate

At the receiving dock, automotive quality control relies on rapid, non-destructive screening to split acceptable production lots from those carrying latent electrochemical defects. Even though cells arrive with factory grading sheets, transit temperature spikes, storage aging, and batch-to-batch variance demand independent verification before cells enter automated pack assembly. Standard DC internal resistance measurements require high-current pulse discharges that warm the cell, alter its state of charge, and consume several seconds per channel.

AC impedance testing at 1 kHz completes an excitation sweep in under a second while maintaining thermal and chemical equilibrium.

Incoming inspection lines typically apply a 1 kHz sinusoidal AC perturbation to extract the real component of the complex impedance spectrum. This single frequency captures bulk electrolyte conductivity, separator pore tortuosity, tab weld quality, and foil contact resistance. While 1 kHz measurements serve as an efficient first pass, single-frequency screening alone can overlook low-frequency charge-transfer degradation or solid-electrolyte interphase growth.

Effective incoming protocols must set explicit upper and lower control limits matched to the specific cell chemistry, format, and nominal capacity.

Establishing acceptance criteria requires distinguishing pure ohmic shifts from changes in electrochemical kinetics. High-power systems, such as 800-volt pack architectures, demand tight cell-to-cell impedance matching to prevent thermal imbalance during rapid charging. A lot with a tight 1 kHz impedance distribution can easily pass receiving checks while still exhibiting severe low-temperature power fade if low-frequency charge-transfer resistance is elevated.

Single Frequency Screening against Full Spectroscopy

Receiving lines operate under strict takt times. Processing thousands of cells requires automated contact fixtures, high-speed signal generation, and fast digital processing. A 1 kHz AC resistance check generates a pass/fail result in less than 200 milliseconds per cell, matching the pace of automated pick-and-place robotics.

That speed explains why single-frequency screening remains the default choice on the dock.

At 25°C and 50% state of charge, a 1 kHz AC resistance deviation exceeding 8% from the nominal 0.45 mΩ baseline triggers immediate batch containment.

Single-frequency checks cannot resolve low-frequency kinetic behavior. Phenomena like solid-electrolyte interphase growth, past lithium plating, and active material degradation manifest between 0.1 Hz and 100 Hz. Full Electrochemical Impedance Spectroscopy sweeps across these lower frequencies require several seconds or minutes per cell, which creates an immediate bottleneck in high-volume operations. Quality operations bypass this constraint using a hybrid approach: every cell undergoes the 1 kHz fast screen, while a statistical sample is diverted to multi-frequency EIS channels for broader diagnostic characterization.

Chemistry Specific Baseline Variations

Lithium iron phosphate cells exhibit far flatter open-circuit voltage curves across state of charge than nickel-manganese-cobalt formulations. Because LFP maintains a stable voltage plateau, SOC shifts between 20% and 80% induce minimal change in 1 kHz AC impedance. Nickel-rich formulations react much more strongly to SOC drift, making strict control of incoming state of charge essential prior to screening.

Incorporating silicon alloys into the anode increases energy density, but it introduces pronounced volumetric expansion during cycling. Uncycled silicon-graphite anodes display elevated contact resistance before initial formation and electrolyte wetting fully stabilize. Inspection guidelines for silicon-doped cylindrical cells must account for this early storage-induced relaxation to avoid rejecting lots over temporary, reversible contact shifts.

The true cost of miscalibrated screening thresholds becomes clear during module assembly: high-resistance cells that bypass inspection generate excessive localized Joule heating under load, accelerating degradation and causing premature capacity loss in service.

Frequency

Applying an AC current across cell terminals produces an impedance response dictated by transport processes operating on different time scales. Frequencies above 1 kHz primarily reflect inductive contribution from terminal geometry, tab construction, and current collector foils. Lower frequency bands capture interfacial charge-transfer kinetics, ionic transport through the solid-electrolyte interphase, and solid-state diffusion inside active material particles.

Decomposing complex impedance spectra into equivalent circuit parameters allows quality engineers to isolate specific physical defects within an incoming lot. On a Nyquist plot, the real-axis intercept marks bulk electrolyte resistance, separator ion mobility, and hardware contact resistance. The high-to-mid-frequency arc reflects lithium-ion transport through the solid-electrolyte interphase film, whereas the mid-frequency arc quantifies charge-transfer resistance across the electrode-electrolyte interface.

Deconstructing Equivalent Circuit Parameters

Equivalent circuit modeling converts raw impedance measurements into discrete electrochemical terms. A modified Randles circuit, incorporating constant phase elements to account for surface roughness and porous electrode structure, forms the baseline for lot verification. Tracking changes in specific circuit elements clarifies whether an out-of-spec lot stems from flawed tab welds, compromised electrolyte, or incomplete formation cycling.

Parameter estimation algorithms fit measured impedance arcs to circuit models in milliseconds. During incoming evaluation, systematic rises in bulk resistance point toward electrolyte contamination, insufficient salt concentration, or incomplete separator wetting. Increases in charge-transfer resistance signal electrode surface passivation, active material oxidation, or moisture contamination introduced during electrolyte filling.

Frequency Banding for Factory Screening

Full-spectrum impedance sweeps from 10 kHz down to 10 mHz yield complete electrochemical diagnostics, but they are far too slow for high-throughput lines. Receiving inspection works around this by applying multi-tone excitation or measuring a few discrete frequencies. Sampling three targeted points delivers sufficient diagnostic visibility without interrupting line speed:

• High Frequency Intercept Point at 1 kHz captures metallic collector resistance, terminal weld integrity, and bulk electrolyte ionic resistance before interfacial charge kinetics engage.
• Interfacial Layer Transition Zone at 100 Hz isolates solid-electrolyte interphase film resistance, uncovering coating variations or additive degradation caused by thermal exposure during storage.
• Charge Transfer Kinetic Point at 1 Hz measures reaction resistance across active particle surfaces, exposing loss of inventory lithium, moisture ingress, or cathode lattice degradation.

Comparing the 1 Hz resistance against the 1 kHz baseline provides a reliable indicator for latent defects. A lot showing normal 1 kHz impedance alongside an elevated 1 Hz/1 kHz ratio indicates degraded kinetic performance that single-frequency screening leaves completely undetected.

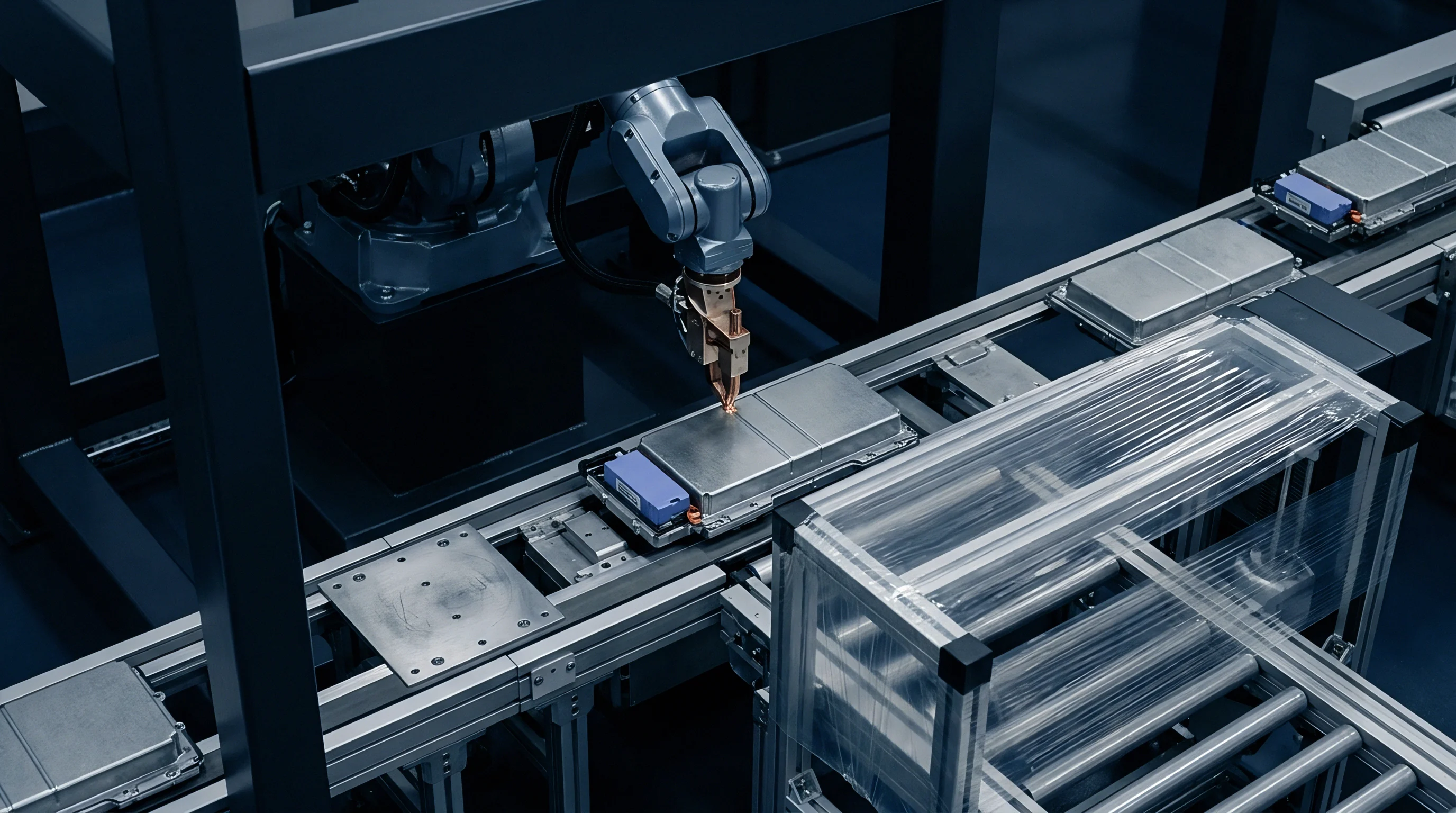

This multi-point strategy intercepts defective cells prior to module integration, catching production faults before laser welding joins busbars and structural frames to questionable inventory.

Whether the high-frequency inductive shifts observed after extended transit stem from physical tab relaxation or micro-fretting corrosion across internal contacts remains an open diagnostic question.

Fixture

Measurement accuracy hinges on mechanical contact quality between test probes and cell terminals. Parasitic contact resistance caused by surface oxidation, debris, or inadequate clamping pressure obscures true cell impedance, causing unwarranted lot rejections. High-throughput fixtures demand probe head designs capable of maintaining stable, low-impedance contact across tens of thousands of test cycles.

Four-wire Kelvin configurations are essential for AC impedance testing below 10 mΩ. By isolating excitation current from voltage measurement, Kelvin setups eliminate lead and contact resistance from the measured value. Heavy-duty current pins deliver the high-frequency AC signal while spring-loaded sense pins measure the resulting microvolt potential drop directly on the terminal surface.

Four Point Kelvin Configuration Mechanics

Building an automated Kelvin fixture requires precise material selection and tip geometry. Pins generally feature beryllium-copper or brass cores finished with hard gold plating over nickel undercoats to ensure low contact resistance and resist mechanical wear. Crown or pointed tip profiles penetrate ambient oxide layers on aluminum cathode pads and nickel-plated steel cases.

Inductive coupling between parallel current and sense leads distorts readings at frequencies above 500 Hz. Automated test assemblies must use twisted pairs, coaxial shielding, and physical separation between drive and sense channels clear down to the contact block. Regular calibration runs should execute automated open- and short-circuit compensation routines to trim out residual fixture inductance and parasitic capacitance.

Mechanical Contact Pressure and Surface Oxidation

Contact resistance fluctuates sharply with clamping pressure. Insufficient force leaves small point contacts subject to micro-arcing and measurement noise. Excessive force, however, risks deforming soft aluminum terminals, fracturing glass-to-metal seals, or damaging pouch tab seals.

Pouch cells and large prismatic formats require controlled mechanical loading during characterization. Pouch formats need uniform planar pressure across the electrode stack to maintain internal contact and squeeze out gas pockets. Prismatic cells require regulated contact force on their terminal pads, held between 0.5 MPa and 1.2 MPa using pneumatic or servo-driven actuators.

Under IEC 62660-3 testing provisions, failure to soak incoming cell batches at 25°C for four hours prior to AC probe contact invalidates all batch rejection claims against the supplier.

High cycle counts inevitably lead to debris accumulation and tip wear. Maintenance tracking must log probe cycles and monitor zero-point calibration drift. When contact resistance crosses defined thresholds, test software flags the specific channel for pin replacement and recalibration.

Suppliers regularly challenge dock rejection notices by alleging that receiving fixtures introduced parasitic inductance or uneven contact pressure that corrupted the recorded spectra.

Variance

Statistical distribution analysis translates raw impedance data into definitive lot disposition decisions. A single shipment contains thousands of cells produced across multiple operating shifts, coating lines, and formation circuits. Analyzing the mean, standard deviation, and overall distribution shape of key impedance metrics offers clear visibility into supplier process capability and stability.

Stable manufacturing produces tight, Gaussian impedance distributions with high capability metrics. Skewed, bimodal, or broad distributions typically point to coating die wear, uneven formation temperatures, or raw material batch variations. Quality systems must enforce rigid statistical gating beyond individual cell pass/fail cutoffs.

What Statistical Threshold Isolates Latent Manufacturing Defects in High-Volume Cell Lots?

Process capability evaluation compares the statistical dispersion of incoming impedance data against engineering specifications. Calculating Cpk incorporates the upper specification limit, lower specification limit, sample mean, and standard deviation:

Cpk = min

Automotive standards typically mandate a minimum capability index of 1.33 for standard components and 1.67 for critical energy storage systems. A lot yielding a Cpk below 1.33 reflects high process variation, exposing downstream modules to operational imbalance even if every cell technically falls within upper and lower specification limits.

Multi-modal distributions indicate mixed sub-populations within a single delivery. A bimodal spread in 1 kHz AC resistance, for instance, often reveals that cells were processed across two different electrolyte filling lines or formation bays operating at different temperatures. Any multi-modal profile warrants immediate lot quarantine, regardless of whether individual values fall inside specification limits.

Containment protocols should engage automatically upon detecting statistical anomalies. The isolation procedure follows a structured sequence to hold, verify, and document non-conforming lots before any cells reach module assembly:

1. Quarantine the entire delivery lot in a designated climate-controlled holding area.
2. Flag the specific cell serial numbers, pallet identifiers, and manufacturing line codes in the enterprise resource planning system.
3. Extract an additional secondary verification sample set equal to double the original ANSI/ASQ Z1.4 sample size.
4. Perform four-wire Kelvin 1 kHz AC impedance checks alongside multi-frequency EIS sweeps on a calibrated master reference bench.
5. Cross-reference recorded impedance data against the supplier shipped quality certificate documentation.
6. Issue a formal Non-Conformance Report to the supplier containing statistical capability calculations, distribution plots, and fixture calibration logs.

Multi-modal impedance distributions inside a single production batch indicate mixed sub-lots from uncalibrated formation channels.

Tracking statistical limits against historical moving averages prevents subtle quality degradation over time. If five consecutive lots exhibit a upward drift in mean 1 kHz impedance, the supplier may have altered raw materials or increased line speed at the expense of long-term cell consistency.

When evaluating high-volume cell deliveries, a tight statistical distribution carries far more weight than whether individual cells happen to meet static upper and lower thresholds.

Thermal

Temperature shifts exert a strong, non-linear influence on lithium-ion cell impedance. Ionic conductivity within organic electrolytes follows Arrhenius kinetics: lower temperatures increase liquid viscosity and suppress ion mobility. Measuring AC impedance without rigorous thermal stabilization creates wide data scatter that renders receiving inspection meaningless.

The Arrhenius relationship governing ionic transport and charge transfer drives an exponential increase in internal resistance as cell temperatures fall. Around 25°C, 1 kHz AC impedance varies by roughly -2% to -4% per degree Celsius. Near 0°C, temperature sensitivity doubles, meaning a minor 2°C thermal gradient across a pallet can skew measured resistance by 8% to 12%.

Temperature Sensitivity Coefficients

Reliable acceptance testing requires adjusting all raw impedance values back to a standard reference temperature, typically 25.0°C. Normalization relies on an empirical thermal coefficient established for the specific cell design and chemistry:

R_norm = R_meas /

Where R_norm represents normalized resistance at 25°C, R_meas is the raw measured value, T_actual is internal cell temperature during testing, T_ref is 25.0°C, and α_T is the thermal sensitivity coefficient expressed in 1/°C. Applying this correction enables quality teams to accommodate minor ambient temperature fluctuations on the dock without triggering false rejections.

Thermal soak times represent a critical operational requirement. Cells arriving via air, ocean, or highway freight experience wide thermal excursions, and densely packed pallets carry considerable thermal mass. While outer packaging reaches indoor ambient temperature within a few hours, the internal core of a pallet can take up to 24 hours to fully stabilize.

State of Charge Relaxation Windows

State of charge influences AC impedance through changes in electrode stoichiometry and charge-transfer kinetics. Nickel-rich chemistries show elevated impedance below 20% SOC, whereas values remain comparatively stable between 30% and 70% SOC. International transport regulations require shipping lithium cells between 30% and 50% SOC under UN 38.3 mandates.

Cells require adequate chemical relaxation time prior to screening if their state of charge was adjusted during incoming checks. Fast charge or discharge pulses induce temporary concentration gradients across the electrolyte and active particles; taking impedance measurements before these gradients dissipate records transient kinetic noise rather than true equilibrium properties.

Quality management protocols must enforce strict operational checkpoints before releasing incoming lots to active production stock:

• Thermal Soak Verification confirms cell pallets rested in climate-controlled areas at 25°C ± 1°C for the required soak duration.
• Infrared Core Temperature Sampling measures cell temperatures across outer, middle, and core pallet positions using calibrated probes before testing.
• SOC Voltage Validation checks open-circuit voltage against allowable shipping SOC windows prior to AC impedance sweeps.
• Instrumentation Calibration Verification runs automated master resistor sweeps to confirm test channel accuracy before testing production lots.

Standard provisions under ISO 12405-4 mandate that compliance testing take place at 25°C ± 2°C after a minimum 12-hour thermal soak. Impedance data gathered under uncontrolled ambient conditions invalidates formal warranty claims against cell suppliers.

Dispute

Commercial supply contracts depend on explicit quality definitions. When an incoming delivery fails dock impedance screening, contract terms dictate whether the buyer can claim lot rejection, credit, or expedited replacement. Vague procurement agreements that list nominal resistance without defining test frequency, soak procedures, contact pressure, and state-of-charge windows trigger legal disputes and operational halts.

Resolving lot rejection disputes requires tight alignment between dock inspection procedures and supplier end-of-line quality control. Discrepancies between a supplier’s Certificate of Analysis and receiving dock measurements typically stem from minor test parameter variations rather than true cell degradation. Typical drivers include inconsistent probe clamping force, unequal thermal soak periods, and differing excitation signal amplitudes.

Framing Impedance Clauses in Supply Agreements

Procurement contracts should incorporate explicit AC impedance acceptance criteria directly into technical annexes. Agreements must define upper and lower specification limits alongside target capability indices, sampling rates, and reference test standards. The agreement must clearly designate the primary acceptance metric ~ whether 1 kHz AC resistance or specific multi-frequency EIS parameters.

Dispute resolution clauses should establish a binding third-party arbitration workflow. If a buyer quarantines a lot and the supplier challenges the finding, contract terms mandate sending a representative sample set to an accredited independent laboratory. The contract should outline the exact test hardware, environmental chamber tolerances, fixture geometries, and analysis algorithms the arbitration lab must use to render a final decision.

Discrepancies between supplier end-of-line impedance data and buyer incoming dock measurements originate in unaligned ambient soak durations and terminal probe oxidation.

Arbitration Workflows and Reference Testing

Executing an arbitration workflow requires rigorous chain-of-custody protocols for test samples. Quarantined units must remain in climate-controlled storage at 20°C to 25°C to prevent aging during dispute review, and quality engineers from both organizations should witness the selection, packaging, and dispatch of sample units to the reference laboratory.

The formal rejection dossier must maintain full traceability from the receiving dock to the reference bench. A defensible submission includes raw time-series excitation and response data, fitted equivalent circuit values, temperature soak logs, fixture calibration certificates, and complete statistical capability calculations.

Aligning commercial acceptance terms with electrochemical realities ensures dock inspections serve as an effective quality filter. Clear, rigorous specifications protect buyers against integrating defective cells while providing suppliers with predictable, repeatable evaluation standards.
