Thermal Interface Material Selection for Prismatic Battery Modules

Gap

Thermal energy originating inside a prismatic lithium-ion cell crosses multiple physical boundary layers before reaching the liquid cooling plate. Standard prismatic cells enclosed in aluminum cans exhibit surface flatness variations ranging from 0.2 mm to 0.8 mm across their broad faces. Extruded aluminum cold plates introduce further planar tolerances across long module dimensions.

Without an intervening compliant layer, direct metal-to-metal contact covers less than eight percent of the theoretical interfacial area, leaving trapped air pockets that act as thermal insulators with a conductivity of approximately 0.026 W/m·K.

Thermal interface materials displace air within these microscopic and macroscopic voids, substituting air with filled polymer matrices engineered to achieve bulk thermal conductivities between 1.5 W/m·K and 8.0 W/m·K. Selecting the format of this interfacial layer governs both total thermal impedance and high-volume assembly yields. Thermal impedance across a joint scales directly with thickness and inversely with contact surface area, modified by interfacial contact resistance.

Thermal Resistance and Interface Impedance Mechanics

Heat transfers through conduction across the solid joint formed by aluminum cell casings and extruded cooling channels. Total thermal impedance combines the bulk thermal resistance of the pad or liquid compound with the contact resistance at both material boundaries. Contact pressure drives contact area.

Higher clamping forces deform the interface compound into surface micro-asperities, reducing contact resistance until a plateau is reached, typically between 100 kPa and 300 kPa.

For a homogenous layer, bulk thermal resistance equals bond line thickness divided by bulk thermal conductivity. A thin 0.5 mm pad with a thermal conductivity of 2.0 W/m·K yields a bulk thermal resistance of 2.5 K·cm²/W. A 2.0 mm gap filled with a 4.0 W/m·K gel yields a bulk thermal resistance of 5.0 K·cm²/W. Doubling the thermal conductivity while quadrupling the gap thickness results in higher overall thermal impedance, demonstrating that minimizing physical gap dimensions takes precedence over maximizing bulk conductivity numbers on material datasheets.

Thinner bond lines with lower bulk conductivity consistently beat thick gaps filled with high-conductivity gel.

Interfacial contact resistance dominates thin joints below 0.2 mm. At these dimensions, surface wet-out capability, polymer matrix flexibility, and surface energy drive performance more than bulk filler concentration. Wet-dispensed liquid gap fillers achieve superior surface wet-out compared to pre-cured elastomeric pads, lowering interfacial contact resistance by up to sixty percent under low mounting pressures.

Material Classifications for Large Prismatic Interfaces

Engineers select between pre-cured pad structures, wet-dispensed liquids, and phase-change coatings based on stack geometry and line velocity. Gap pads offer dimensional stability, zero cure time, and clean handling during manual or semi-automated module assembly. Pads require predefined compression ratios between twenty and fifty percent to establish complete surface contact without exerting excessive permanent stress against cell sidewalls.

Liquid gap fillers arrive as single-part moisture-cure or two-part addition-cure resins that flow under low assembly forces. Liquid formulations fill complex dimensional tolerances, tolerate wide stack-up variations, and eliminate high pre-clamping loads. Two-part silicone and polyurethane liquids cure in place to form soft elastomeric gels, matching uneven cold plate contours without generating localized high-stress points across the prismatic cell face.

Phase change materials combine the clean handling of dry film pads with the low contact resistance of liquid pastes. These compounds remain solid at room temperature, softening and flowing above a threshold temperature, typically between 45 and 55 degrees Celsius. Phase change films suit applications with highly uniform, narrow gaps, but prove difficult to manage in large prismatic modules where gap variations exceed 0.5 mm across a single module tray.

Choosing the wrong interface format introduces distinct physical degradation mechanisms during operational life.

• Thermal impedance spikes occur when air voids form within wet liquid fillers due to improper bead pattern merging during cell placement.
• Pump-out displacement develops when differential thermal expansion between cell casings and cold plates squeezes non-curing pastes out of the structural joint.
• Phase separation happens under high vibration frequencies, causing liquid silicone oil to bleed out from heavily loaded particulate networks.
• Material dry-out arises when low-molecular-weight siloxane species evaporate under elevated module operational temperatures.

A simple engineering rule governs interface selection: design the cold plate fixture to enforce the minimum achievable bond line thickness before selecting high-bulk-conductivity liquids to cover tolerance stack-up.

Compliance

Battery cells expand and contract during electrochemical cycling as lithium ions intercalate into and exit the graphite anode lattice. Prismatic lithium iron phosphate cells display volumetric breathing during each charge and discharge cycle, alongside continuous irreversible thickness expansion over their operating lifetime. Irreversible pouch and prismatic cell swell ranges from three to ten percent at eighty percent capacity retention.

Thermal interface materials situated beneath prismatic cells absorb this mechanical displacement. The material must sustain continuous contact with cold plate surfaces while preventing compressive stress spikes that could deform cooling channels, breach dielectrics, or damage internal cell jellyrolls.

Stack Pressure and Lifecycle Swelling Dynamics

Initial clamping force established during module binding fluctuates across thousands of charge cycles. Cell expansion compresses the interface. When cells expand, compressive strain on the underlying pad increases from a nominal thirty percent to upwards of sixty percent.

A material with a steep compressive stress-strain modulus generates excessive reaction forces against the module floor, deflecting aluminum cooling plates and compromising coolant flow passages.

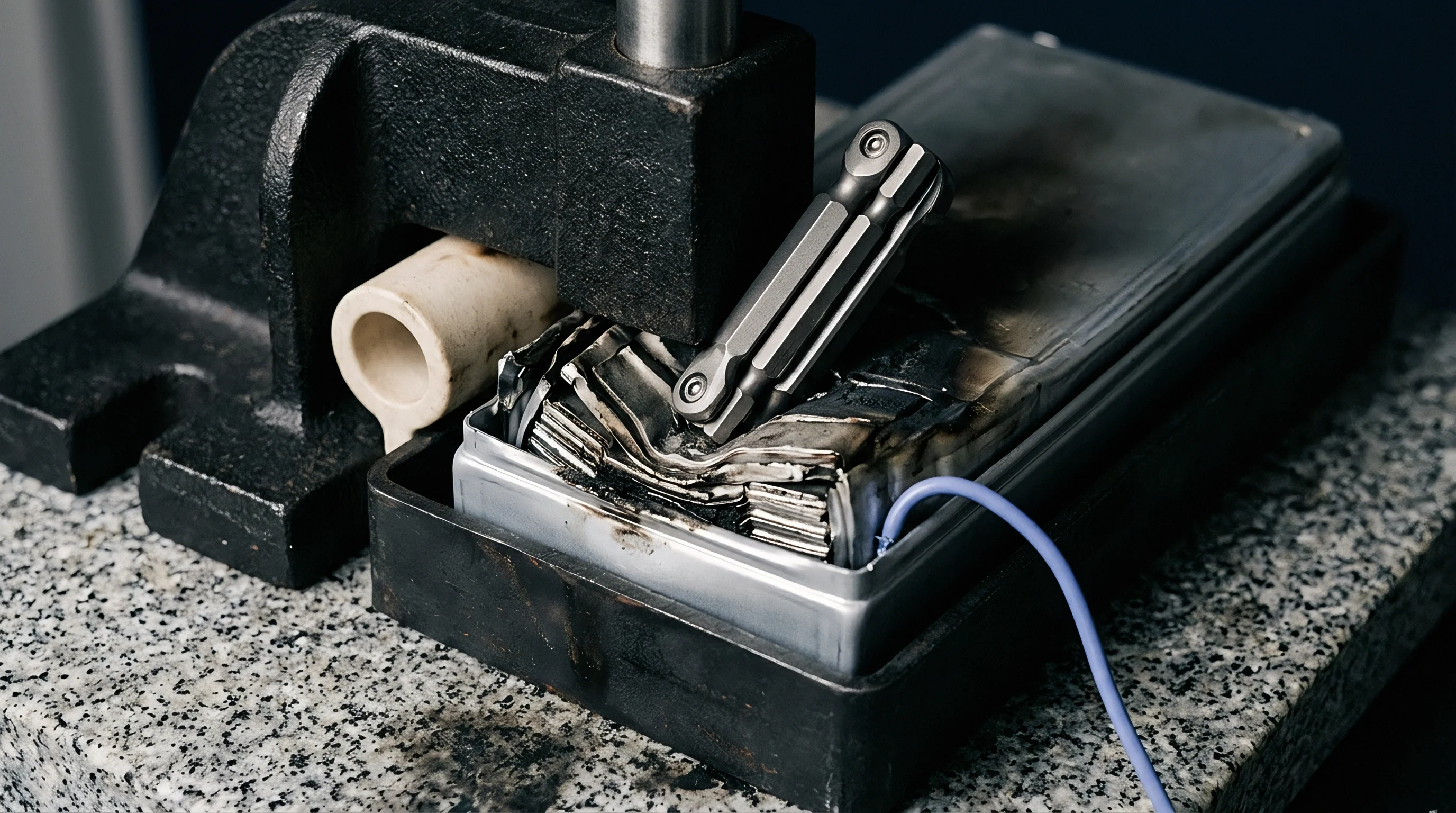

Maintaining continuous pressure across the bottom surface of prismatic cells prevents localized heat accumulation. If compressive stress exceeds 500 kPa on cell faces, internal electrode separators risk localized crushing, leading to lithium plating, internal micro-shorts, and accelerated capacity decay.

Compressive stress measurements taken at fifty percent strain under 23 degrees Celsius yield a nominal modulus of 350 kPa for standard silicone gap pads.

Low-modulus silicone gap fillers display a soft, compliant response, exerting lower back-pressure during lifetime cell expansion. Polyurethane formulations offer strong structural bonding properties but exhibit higher mechanical stiffness, requiring careful calculation of cold plate wall thickness to withstand long-term expansion forces.

Viscoelastic Stress Relaxation and Creep Behavior

Polymers held under constant compressive strain shed initial reaction force through internal chain realignments. Viscoelastic stress relaxation reduces internal material pressure over time, stabilizing mechanical load against adjacent cell walls. Elastomeric formulations lose between twenty and fifty percent of their initial peak reaction stress within forty-eight hours of module assembly.

Creep behavior under long-term dynamic loading causes thin sections of interface material to migrate away from high-pressure zones. When prismatic cells swell unevenly, material flows toward lower-pressure margins, resulting in localized bond line thinning near the center of the cell base. This localized thinning decreases thermal resistance directly under the center of the cell, provided the material does not tear or push out entirely.

Evaluation of interface compliance requires systematic analysis of mechanical tolerances across the module assembly lifecycle.

• Initial gap dimension calculation includes minimum, nominal, and maximum tolerance stack-ups across cell cans, structural frames, and cold plate surfaces.
• Compressive force mapping verifies that maximum cell swell conditions do not exceed the structural yield limit of cold plate coolant channels.
• Minimum strain verification ensures that fully contracted, fully discharged cold cells maintain at least fifteen percent compression on pre-cured gap pads.
• Permanent set assessment evaluates elastomeric recovery after extended high-temperature aging to ensure continuous contact upon cell contraction.

Designing an overly rigid interface layer beneath large prismatic cells transfers cyclic electrochemical swelling loads directly into cooling plate structures, fracturing brazed joints and causing catastrophic coolant leakage into the high-voltage module cavity.

Isolation

Battery designs place thousands of volts across compact spatial boundaries inside the energy storage system. Modern prismatic electric vehicle modules operate at system voltages up to 800 volts direct current, while stationary storage racks reach 1500 volts. Prismatic cells feature thin anodized or PET-wrapped aluminum casings, leaving the thermal interface layer as a primary electric isolation barrier between active cell potentials and grounded cooling structures.

Electric breakdown of the interface causes localized short circuits, module arc-over, and severe thermal safety events. High thermal conductivity relies on heavy loading of solid ceramic filler particles, which alters the dielectric strength and electrical volume resistivity of the base resin system.

When Does Dielectric Breakdown Trigger Module Thermal Runaway?

Metal debris or microscopic burrs on cooling structures alter local electric field lines. A high voltage impulse or transient surge polarizes trapped air bubbles or thin spots within the interface layer, creating partial discharge channels. Over extended operational cycles, partial discharge degrades the surrounding organic polymer matrix, converting insulating siloxane or polyurethane chains into conductive carbon tracks.

Air exhibits a dielectric breakdown strength of roughly 3.0 kV/mm, whereas ceramic-filled silicone interface compounds achieve 10.0 kV/mm to 18.0 kV/mm. When an electric field spans a composite joint containing air voids, the field concentrates across the lower-permittivity air space. Localized electrical breakdown occurs within the air void at lower overall voltages, initiating treeing breakdown through the solid thermal interface.

Compliance with UL 94 V-0 flame rating and IEC 61960 electrical insulation limits requires minimum dielectric breakdown strengths above 10 kV/mm after thermal aging.

Particulate ceramic fillers such as alumina, aluminum hydroxide, and boron nitride enhance thermal transport while maintaining high volume resistivity, typically above 10^13 Ohm·cm. High ceramic filler concentrations reduce mechanical flexibility and increase foreign particle sensitivity during module pressing.

Creepage Distances and Metal Debris Entrapment

Surface tracking paths widen when conductive dust or aluminum turnings settle along polymer margins. Creepage distance represents the shortest path along the surface of an insulating material between two conductive elements. Clearance represents the shortest path through air.

The thermal interface material must extend beyond the physical footprint of the cell casing base to enforce necessary creepage distances, preventing surface arc tracking around the edge of the insulating layer.

Inclusion of fiberglass carriers or Kapton reinforcement films within gap pads increases puncture resistance against sharp metal burrs present on cold plates or cell casings. Reinforcing scrims prevent complete punch-through during high-pressure module assembly, establishing a controlled physical floor for minimum dielectric clearance.

Establishing proper electrical protection calls for strict qualification limits across all production material lots.

• Hi-pot isolation testing applies a direct current test voltage, typically 2500 V to 4000 V DC, between cell groups and cold plate channels for sixty seconds.
• Volume resistivity measurement confirms that material batches maintain insulation resistance above 10^12 Ohm·cm under elevated ambient temperatures.
• Burr tolerance testing evaluates puncture resistance by pressing sharp aluminum test pins into interface samples under maximum module assembly forces.
• Partial discharge monitoring detects micro-arcing within internal material voids at AC voltages above 1000 V, verifying long-term insulation stability.

Under international safety standards including IEC 62133 and UL 2580, an electrical isolation breach between battery cell channels and cooling circuits invalidates module safety certification, mandating a complete recall of affected battery packs.

Bead

Dispensing liquid interface formulations onto cooling plates demands precise volumetric flow control and predictable fluid movement. High-volume manufacturing lines producing battery packs rely on two-part liquid gap fillers dispensed by multi-axis robots. Rheological behavior under shear rate dictates how quickly a bead spreads across the cooling plate, wets out cell surfaces, and closes air gaps without creating high assembly back-pressure.

Liquid fillers display severe shear-thinning characteristics, where viscosity drops by orders of magnitude during high-pressure pumping through automated nozzles, then rapidly recovers high viscosity upon deposition to prevent sag and run-off before cell insertion.

Automated Dispensing and Inline Rheology Control

High filler loadings give two-part liquid polymers pronounced shear-thinning characteristics under pumping velocity. Viscosity at low shear rates, around 1/s, ranges from 100,000 mPa·s to 500,000 mPa·s to keep heavy ceramic particles suspended during shipping and storage. Under high shear rates exceeding 1000/s inside dispense nozzles, viscosity drops below 10,000 mPa·s, enabling fast dispense speeds up to 300 mm/s.

A high yield stress ensures the dispensed material bead holds its height and shape on the cold plate without slumping into unwanted zones or electrical contacts prior to cell placement. Bead geometry typically assumes a triangular, rectangular, or sinusoidal pattern designed to push air outward as prismatic cells press down onto the fluid layer.

Automated volumetric metering pumps achieving plus or minus one percent dispense accuracy control wet gel weight across multi-cavity cold plates.

Pot life and cure profile dictate line takt times. Two-part silicone and polyurethane gap fillers begin crosslinking upon passing through static or dynamic mix tubes. Pot life defines the allowable time window before material viscosity doubles inside the dispense tip, typically set between ten and forty minutes.

Gel time defines the onset of elastomeric network formation, while full cure occurs within twenty-four hours at room temperature, or accelerates under inline heat tunnels.

Metering Pump Wear and Filler Abrasiveness

Alumina and aluminum hydroxide particles suspended in resin abrade volumetric piston bores and progressive cavity screws. Sharp ceramic fillers wear down hardened tool steel and tungsten carbide pump components, altering the displacement volume per stroke over long production runs.

Mix ratio drift between resin components A and B alters thermal conductivity, mechanical hardness, and cure velocity. A shift of more than five percent in component ratio leaves uncured liquid pockets or overly brittle polymer matrices, both of which degrade long-term module performance.

A standard inline dispensing sequence follows strict operational phases to maintain bead quality and cycle times.

1. Purge high-pressure supply lines and execute automated shot-weight verification to confirm volumetric ratio accuracy.
2. Position cold plate trays under multi-axis dispensing heads within a temperature-controlled cell holding 23 degrees Celsius ± 2 degrees.
3. Dispense defined parallel or wave pattern beads across cold plate zones, maintaining constant nozzle standoff distance.
4. Inspect pattern geometry and bead height using 2D or 3D laser profiling systems to verify coverage volume before cell placement.
5. Lower prismatic cell groups into wet material at controlled insertion speeds below 5 mm/s to allow uniform fluid displacement without trapping air.

Dispense anomalies and line pumping pressure spikes often stem from batch-to-batch raw particle variations, even when ceramic filler lot shifts remain within agreed supply specifications.

Remedy

Unintended thermal impedance increases during fleet operation stem from pump-out, siloxane migration, and phase separation. Field failures traced to interface degradation degrade pack heat dissipation capacity, triggering BMS current throttling and localized cell overheating. Validating interface endurance requires rigorous qualification regimes designed to simulate ten to fifteen years of vehicle operational stress within accelerated lab test windows.

Sustained thermal cycling creates relative mechanical motion between cell bases and cooling plates. Non-cured greases or poorly crosslinked gels suffer from pump-out, where lateral thermal expansion cycles physically extrude the compound out from under the cell face, leaving empty gaps in the heat path.

Qualification Testing under Accelerated Thermal Cycling

Environmental chambers subject complete battery sub-assemblies to temperature extremes ranging from minus forty to plus eighty-five degrees Celsius. Rapid thermal cycling tests, compliant with ISO 16750-4, cycle temperatures at rates up to 10 degrees per minute to induce extreme thermal stress across material interfaces. Thermal impedance increases are tracked inline using embedded heat flux sensors or transient thermal response analyzers.

Power cycling tests combine ambient temperature swings with active high-current charging and discharging of prismatic cells. Active heat generation inside cell blocks creates severe local thermal gradients across the interface thickness, driving volatile species out of low-grade polymer matrix formulations.

Siloxane outgassing poses specific risks in sealed battery enclosures. Low-molecular-weight cyclic siloxanes (D4 through D10 species) volatilize from standard silicone materials at elevated temperatures. These airborne siloxanes condense onto electrical relay contacts, BMS circuit boards, and optical sensors, forming insulating silicon dioxide films under electrical arcing that cause intermittent pack electronics failures.

Commercial Risk Allocation and Warranty Boundaries

Contractual agreements between battery cell manufacturers, module integrators, and chemical compounders dictate financial liability when field performance degrades. Qualification procedures establish clear technical performance baselines before production sign-off. The warranty seam separates cell swelling causes from interface degradation issues.

When module thermal impedance rises beyond design thresholds during customer operation, root-cause investigations target three distinct technical domains. If cell swelling exceeds agreed engineering limits, cell suppliers bear financial responsibility for resulting interface squeeze-out. If material dispensing volumes drop below target specs, module integrators absorb warranty liabilities.

If material hardens, cracks, or bleeds oil within specified mechanical limits, the chemical manufacturer faces commercial claims under material warranty clauses.

What long-term diagnostic method definitively isolates interface voiding from internal cell capacity decay inside a fully potted, non-serviceable prismatic module operating in the field?
