DC Internal Resistance

Measurement Technique

The evaluation of this property requires a precise load bank capable of switching current rapidly while logging voltage at microsecond intervals. An initial voltage reading is taken at rest, followed by the application of a high current pulse for a fixed duration, usually between one and ten seconds. The difference between the resting voltage and the voltage under load is divided by the current magnitude to calculate the dc internal resistance of the cell.

This method differs from AC impedance because it captures the slower polarization effects that occur during sustained power delivery. Accurate results depend on the state of charge and the age of the battery, as both factors influence the internal chemistry. Manufacturers use this data to generate resistance maps that predict how the battery will perform across its entire operational range.

Thermal Performance

Energy lost through the internal resistance of a cell is converted directly into heat, which can lead to accelerated degradation or safety risks. High dc internal resistance causes a greater temperature rise during fast charging or heavy acceleration in electric vehicles. This heat generation reduces the round trip efficiency of the energy storage system and increases the cooling load required to maintain stable operation.

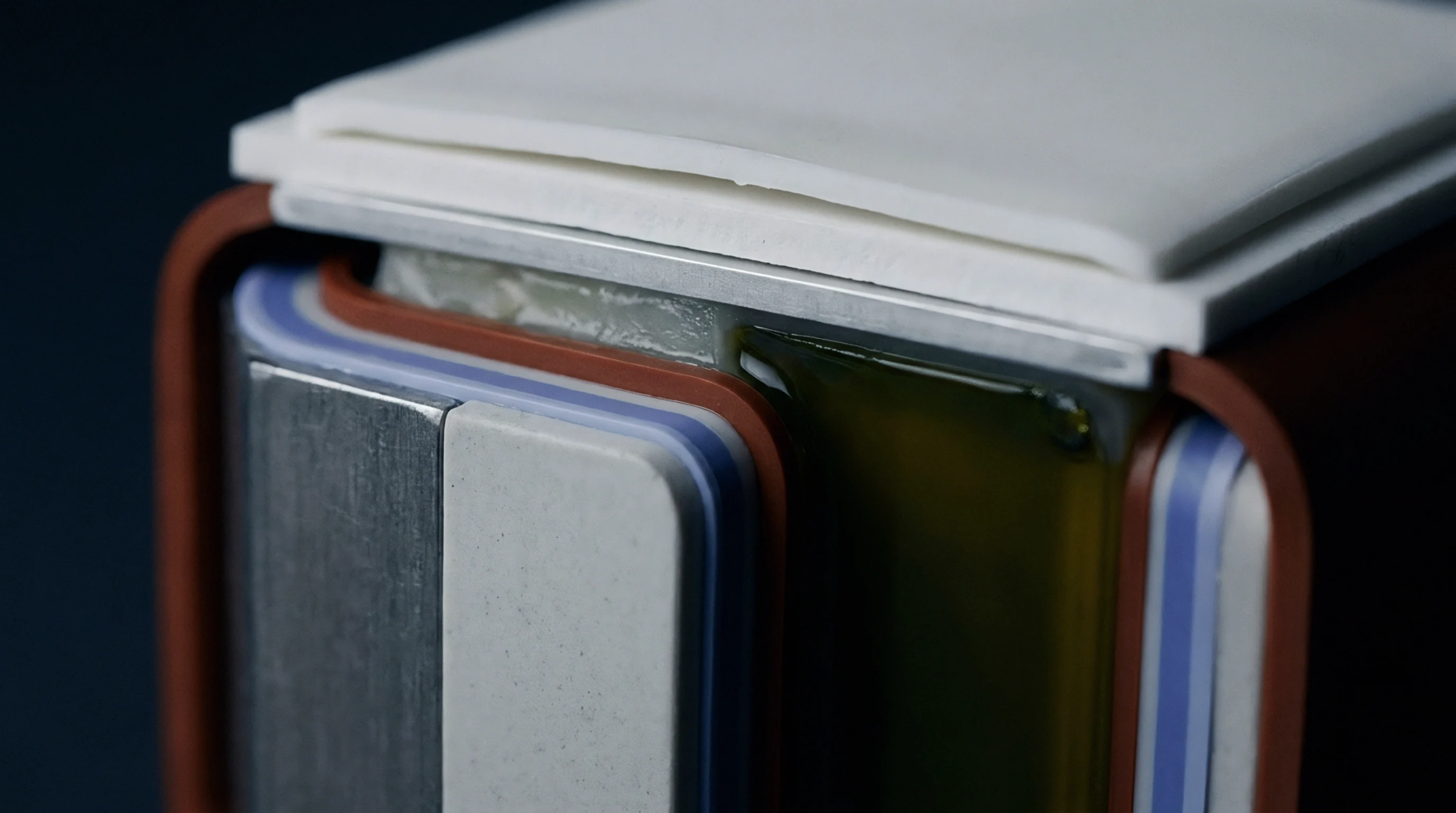

If the resistance is too high, the battery management system may be forced to throttle the power output to protect the cell from overheating. This relationship makes the resistance value a critical factor in the design of the thermal management hardware for a battery pack. Engineers strive to minimize these losses by optimizing the electrolyte conductivity and the thickness of the electrode coatings.

Quality Assessment

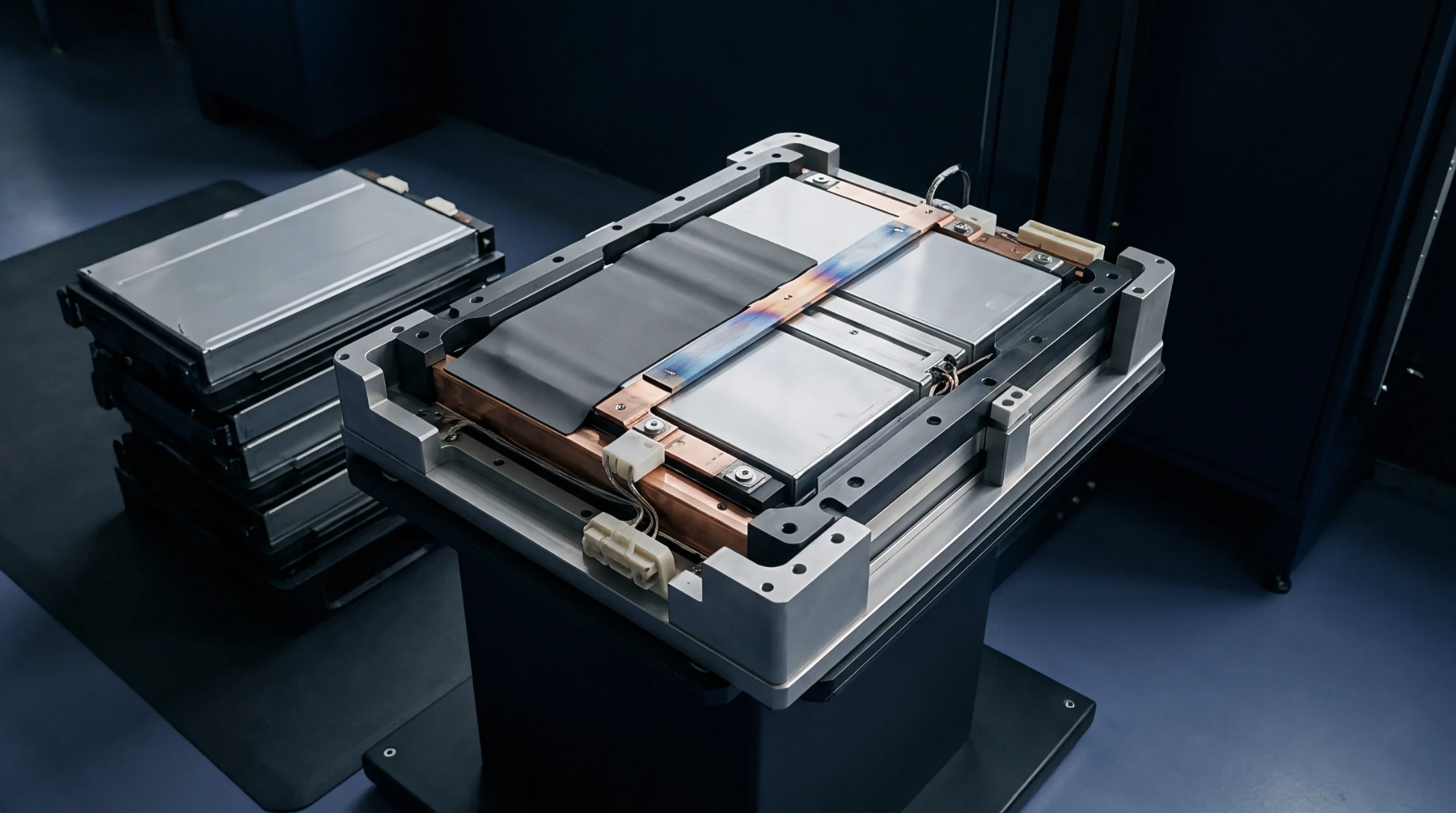

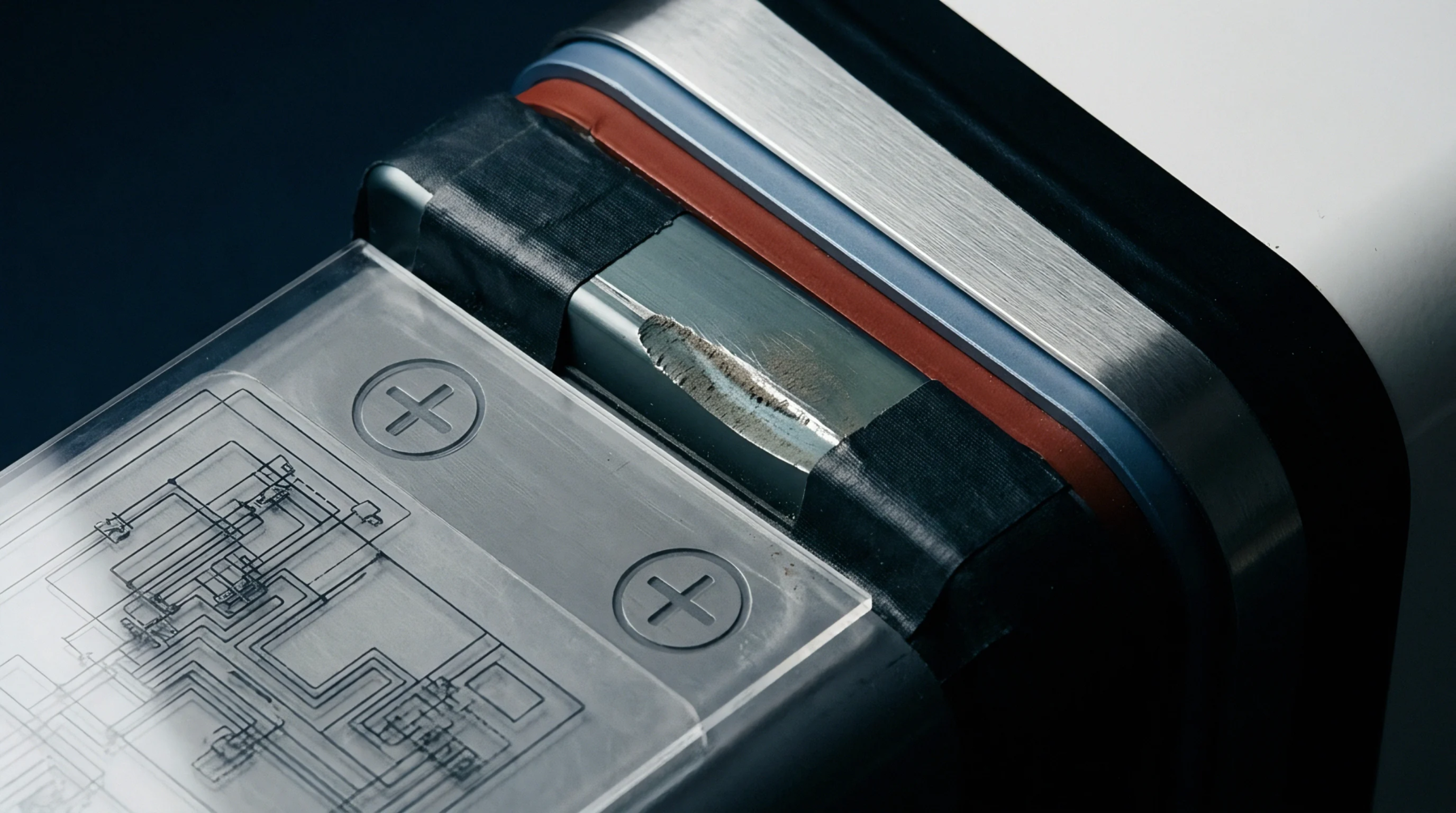

Sourcing teams and quality engineers monitor this metric during cell production to ensure uniformity and to detect manufacturing defects. A cell with an outlier dc internal resistance value often indicates a problem with the tab welding or a contamination issue in the slurry. Matching cells with similar resistance values is necessary for building balanced battery packs where each series string shares the load equally.

This property also serves as a diagnostic tool for tracking the aging of the battery over thousands of cycles. As the solid electrolyte interphase grows and the active material cracks, the resistance increases, signaling the approach of the end of life for the cell. Commercial procurement contracts often specify a maximum allowable resistance at the beginning of life to guarantee performance.
